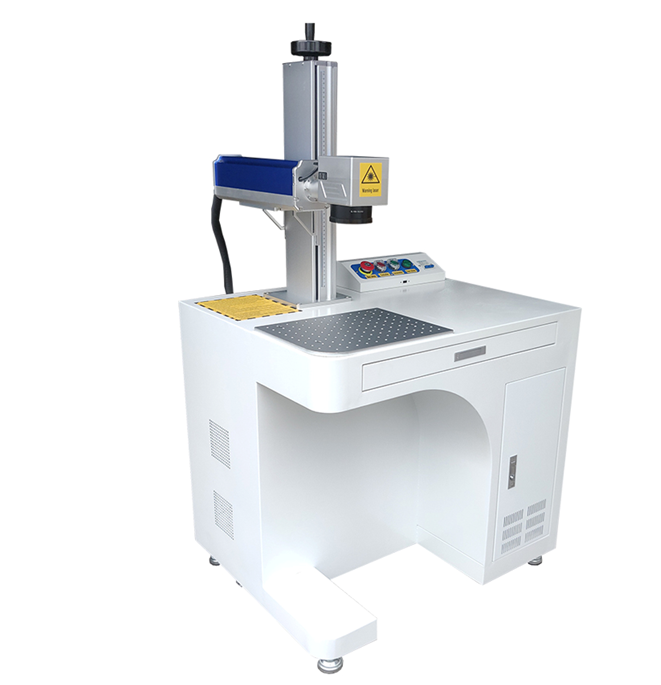

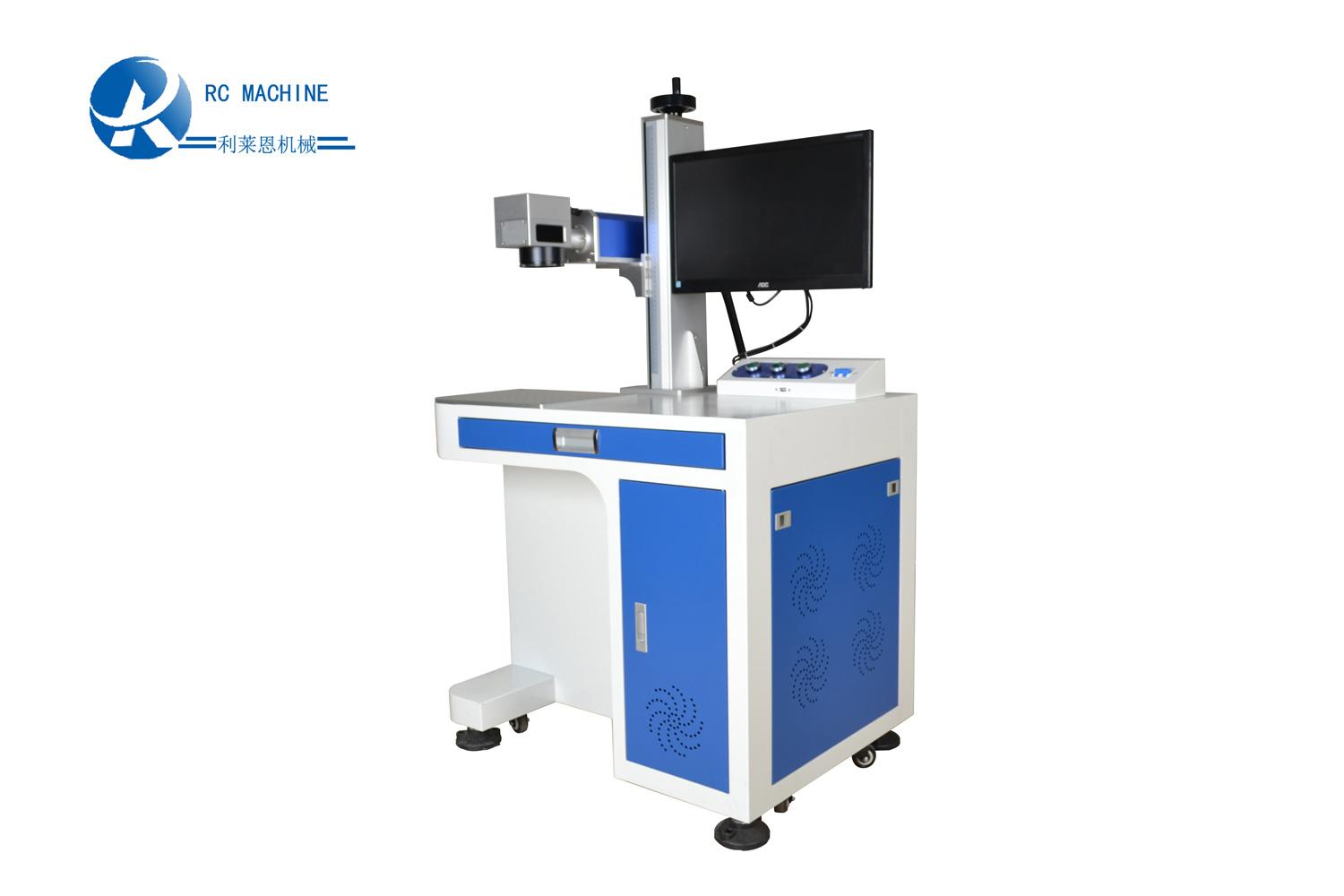

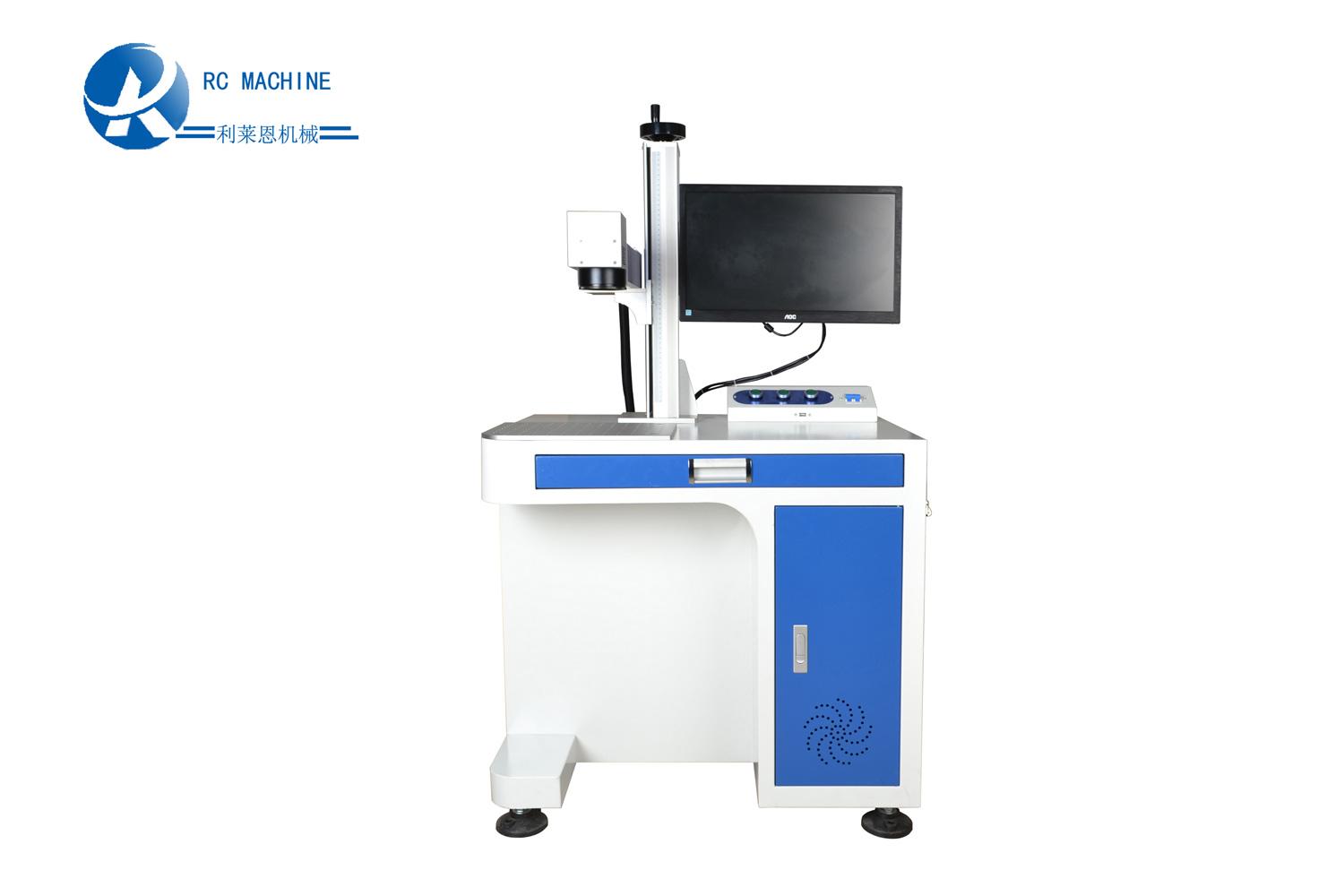

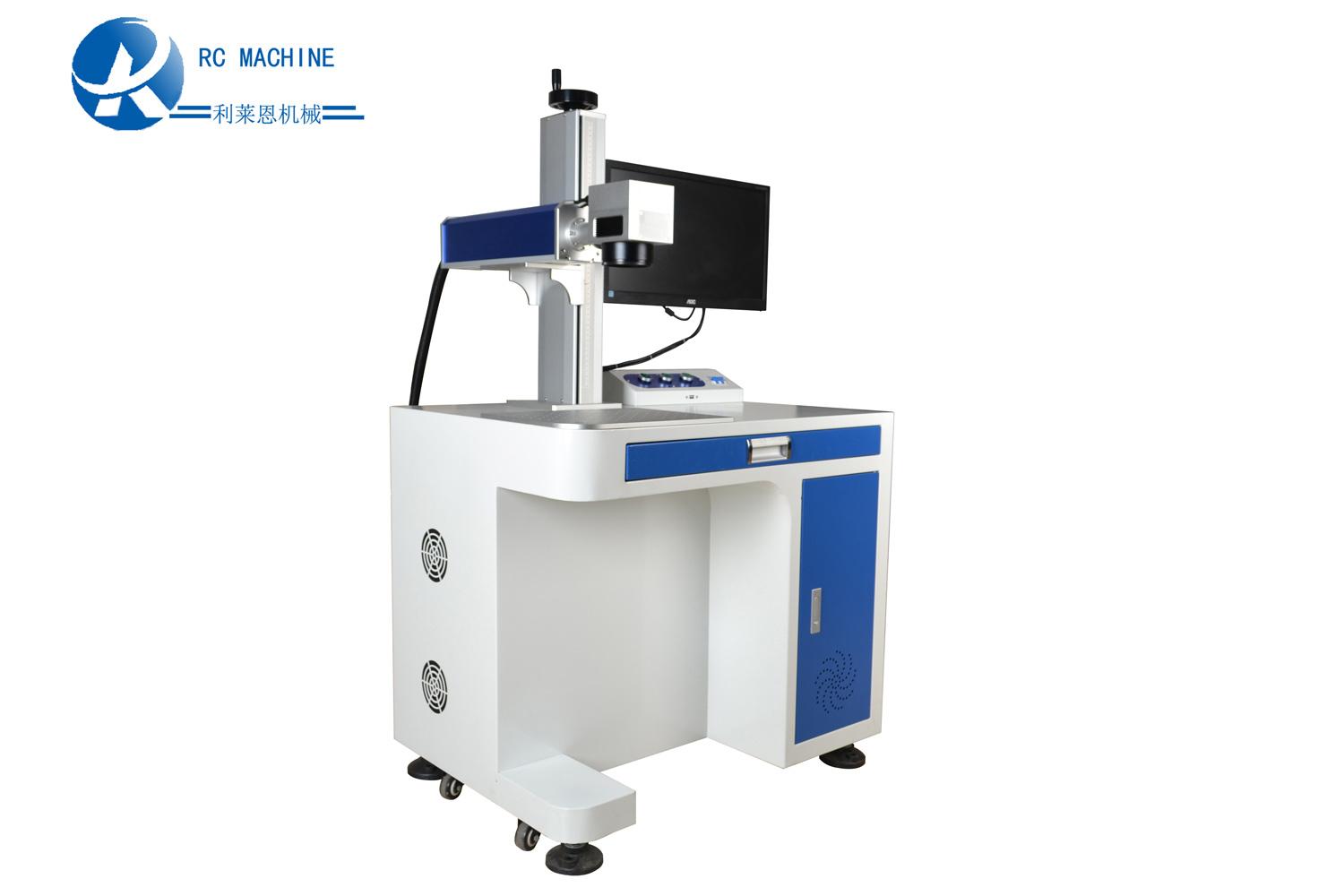

R20 Fiber laser marking machine 20W
For: silver, gold, metal aluminum, stainless, copper, engraving, non-metal with painting, and plastic acrylic with color……
R20 laser marking machine comes with computer, which can let customer easily use the machine. Machine is already developing many years, so its very stable machine. The machine no have the consume parts, customer can even use more than 5 years
Machine parameters
Model | R20 |
Laser power | 20watt/30watt/50watt |
Marking area | 100*100mm/175*175mm |
Length of laser wave | 1064nm |
Minimum shaping character | 0.5mm |
Engraving speed | 0-7000MM/s |
Resetting Positioning accuracy | ±0.01MM |
Operating temperature | 0-45℃ |
Graphic format supported | BMP.GIF.JPEG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF |
Power supply | AC220V±10%.50Hz/60Hz |
Cooling method | Air |
Gross power | < 1500W |
Net weight | 100KG |
Dimension(mm) | 1500*1200*1100 |

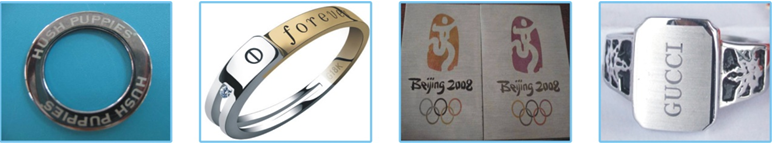

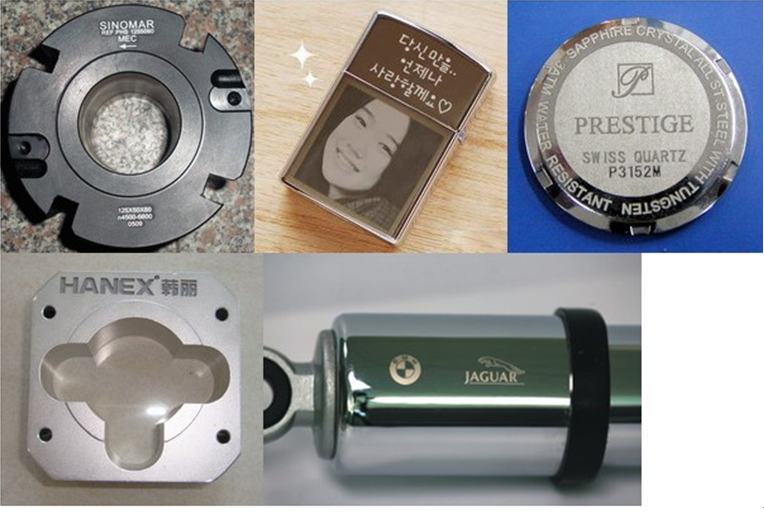

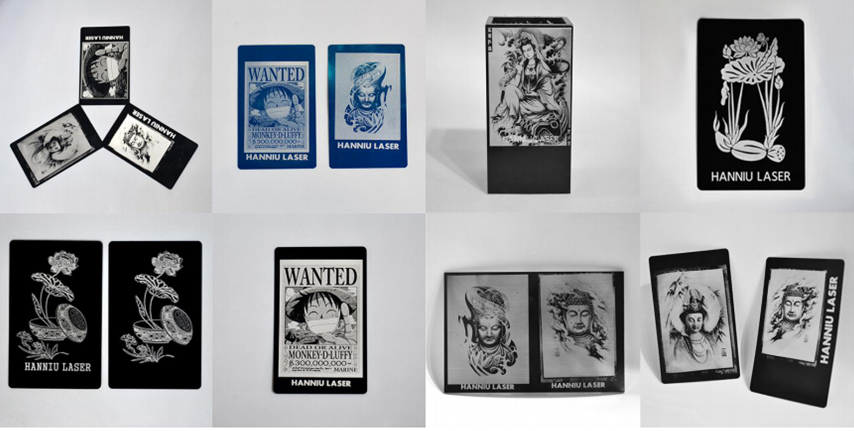

Engraving sample
