1390 screw laser cutting machine
1390 screw laser cutting machine
1390 screw laser cutting machine
1390 screw laser cutting machine
1390 screw laser cutting machine
1390 screw laser cutting machine
Product Introduction:

1390 screw laser cutting machine data


Applicable materials:

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.



Applicable industries:

advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.

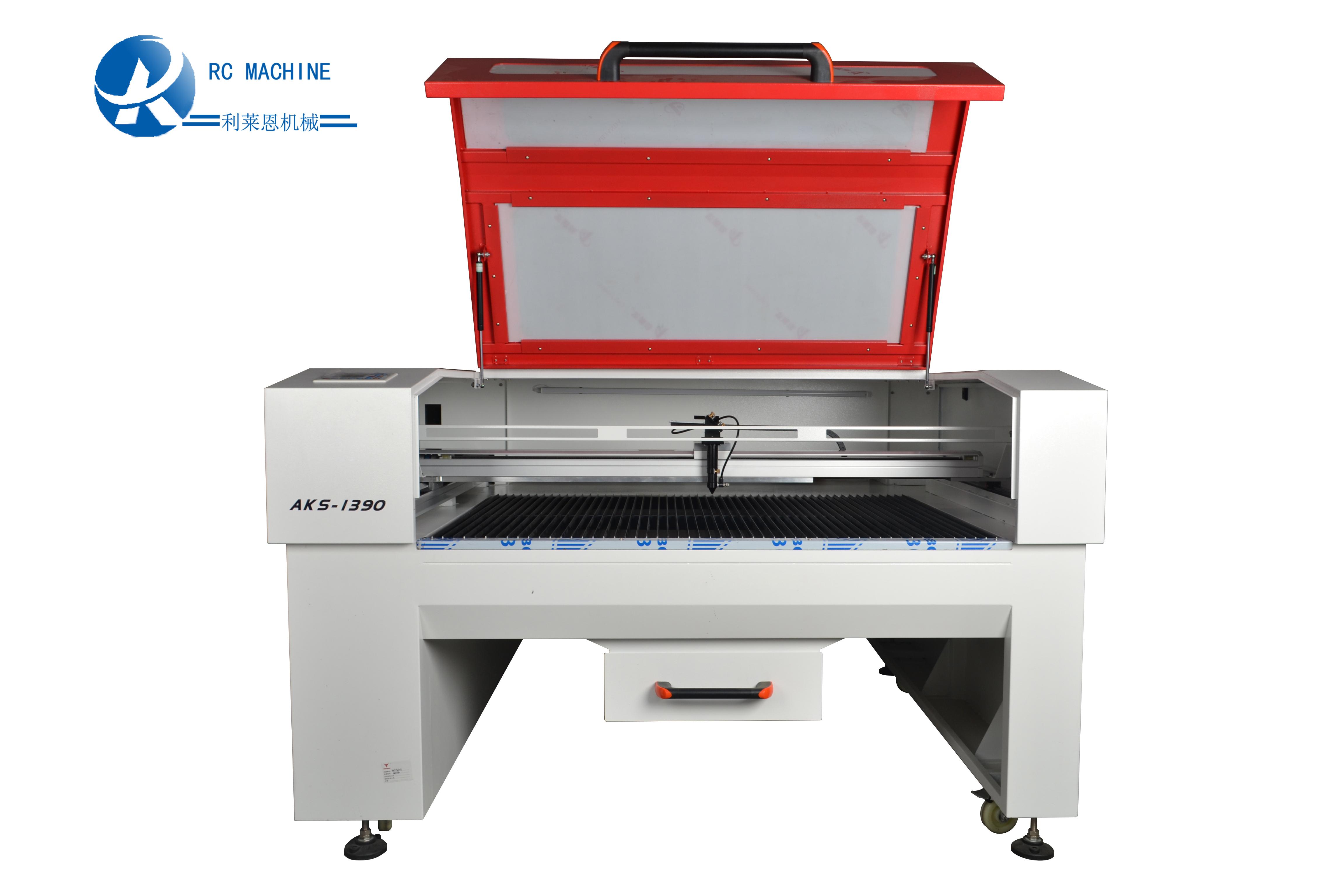

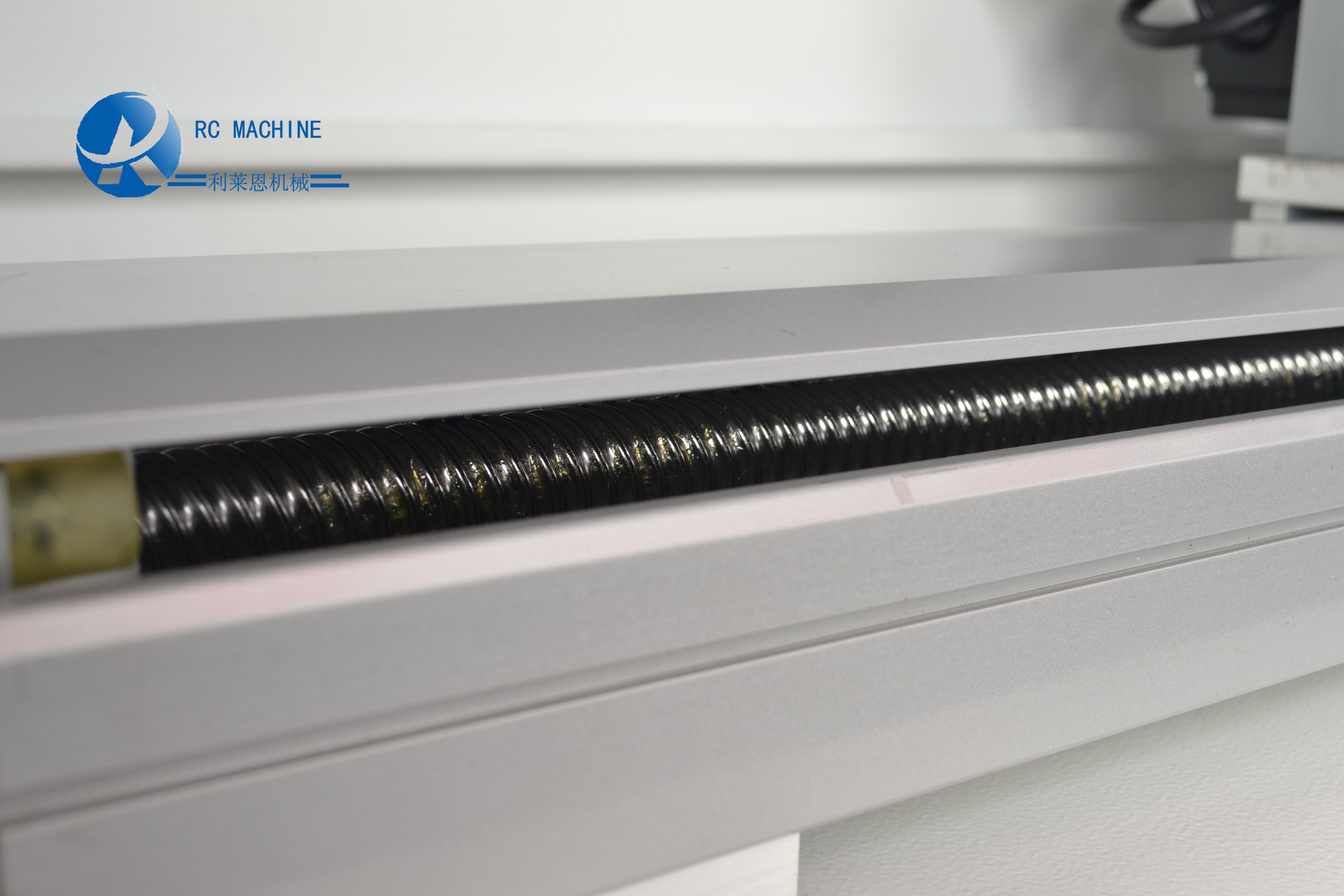

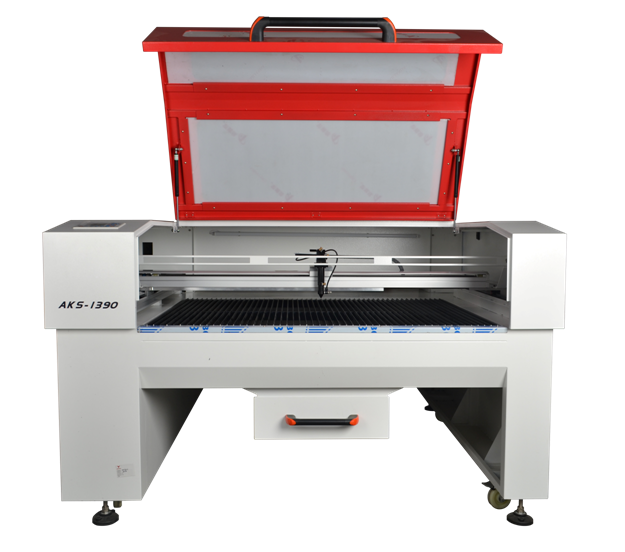

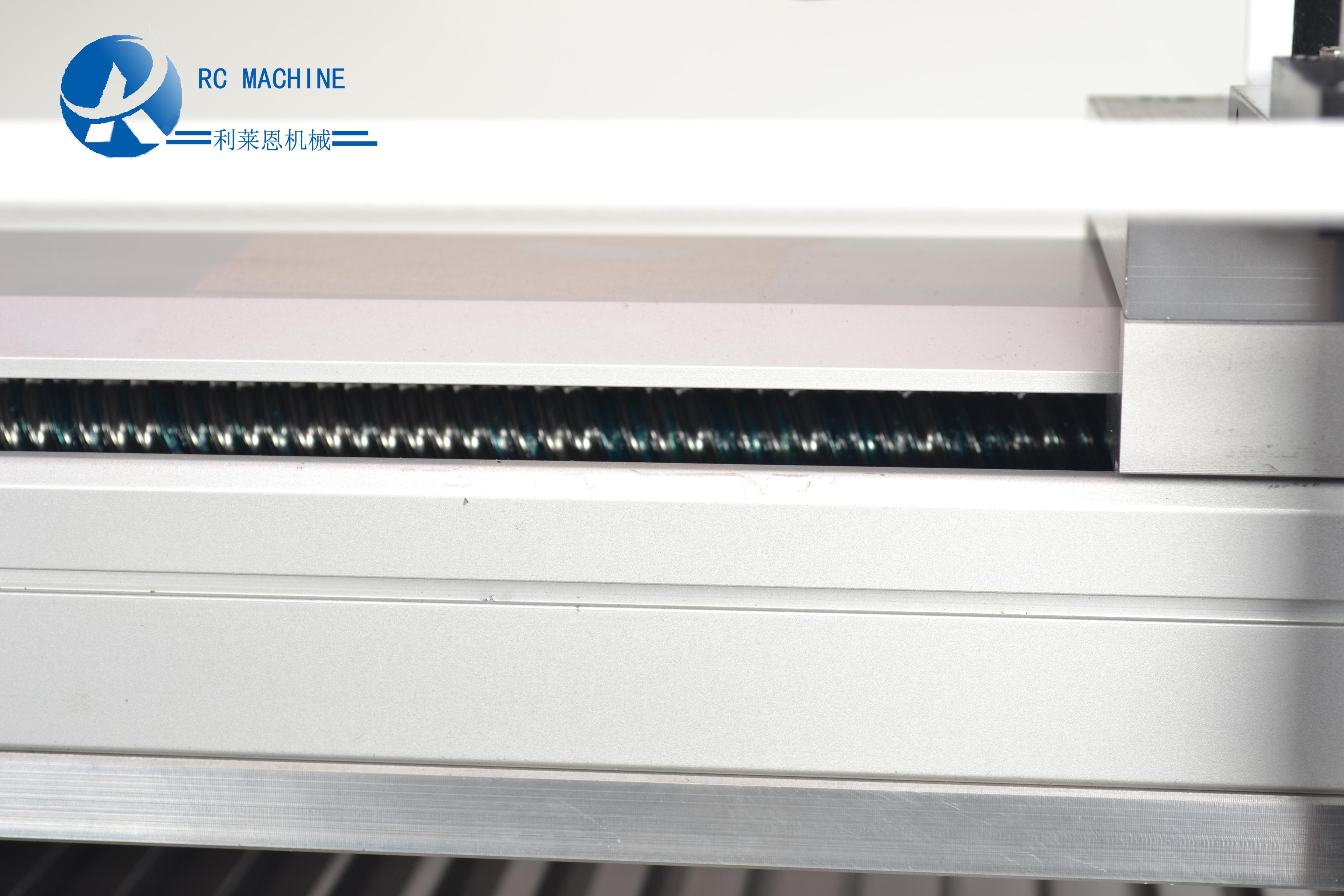

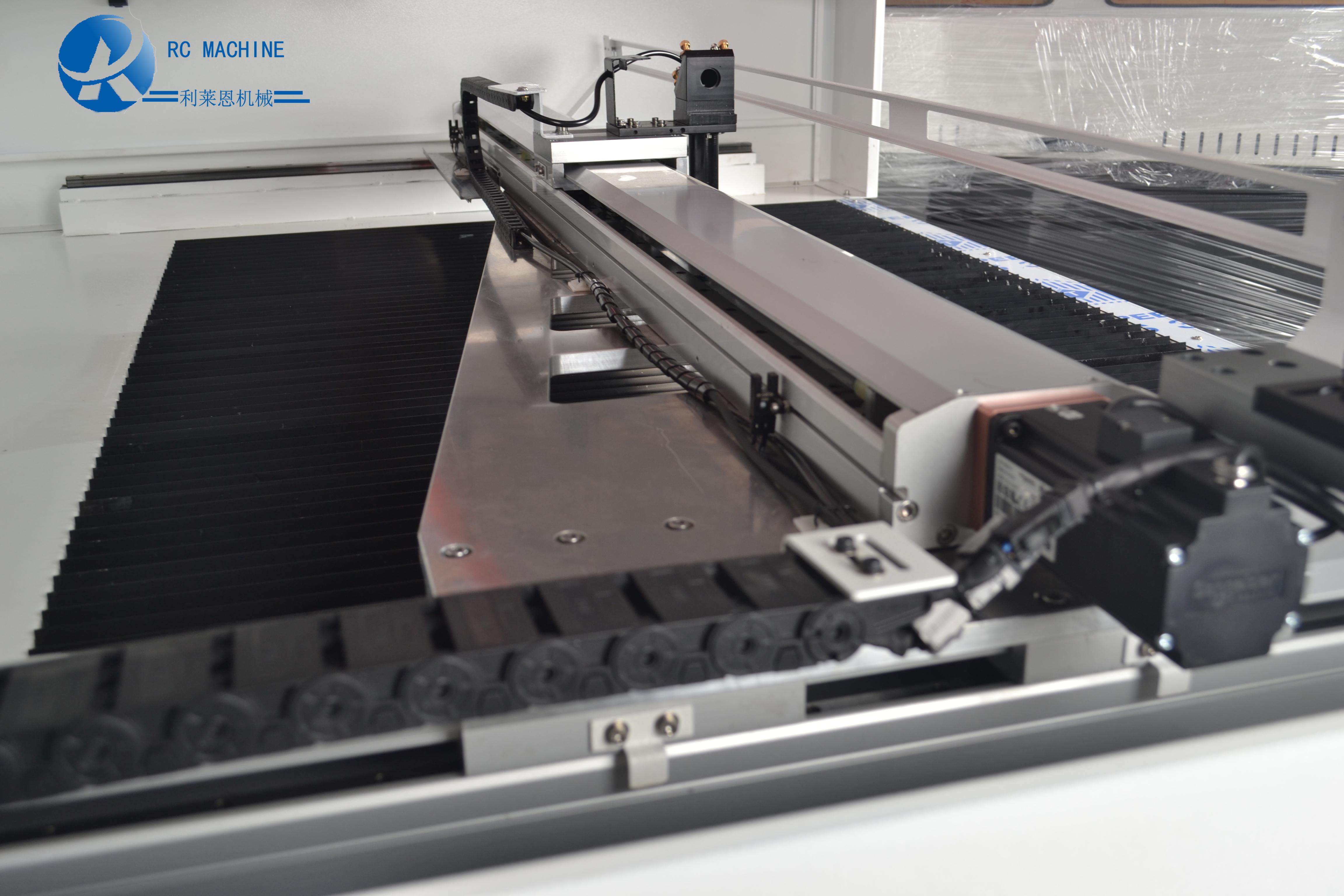

AKS1390 laser cutting and engraving machine with the fast speed cutting, this machine is specially for acrylic cutting with fast speed, machine was used screw move and servo motor. So its more accuracy for strong thickness acrylic cut. This machine we use double screws on the Y axial, which make sure the cutting speed and accuracy.

Machine can make:

Parameter of the machineimage.pngimage.png1682315500272.jpg

Parameter of the machine

model (one   heads )

 R-1390

Cutting and Engraving area

1300× 900(mm)

Laser power

    150watt/ 300watt

Engraving speed

0-64000mm/min

Minimum shaping character

Chinese Character2mm   Letter1mm

Resetting Positioning accuracy

±0.01MM

Transmission

Straight linear guide

Operating humidity

0-45

Operating humidity

5%-95%(free of condensed water)

Cutting thickness

 Fabric leather 0—18mm, acrylic 30mm

Graphic format supported

.BMP.GIF.JPEG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF

Power supply

AC220V±10%.50Hz/60Hz

Cooling method

 Water chiller

Gross power

1500W

Laser lens

                  Singapore/USA

Net weight

 550KG

Dimension(mm)

 1800*1400*1200mm

Packing size

1960*1600*1300mm
