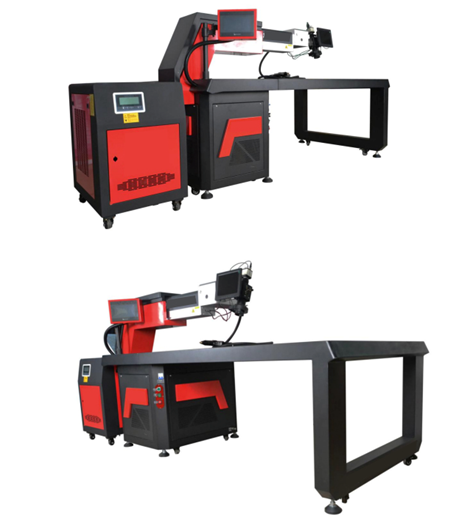

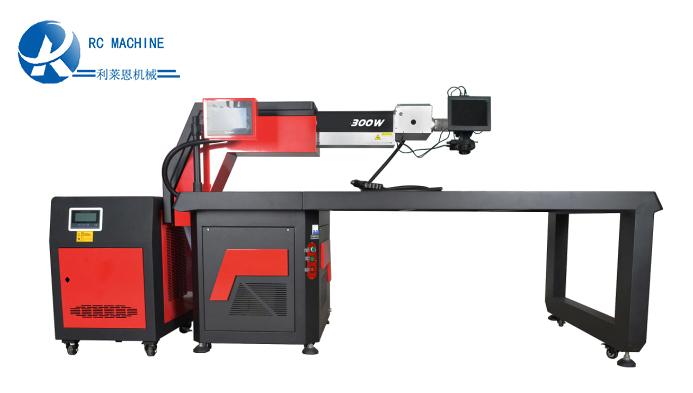

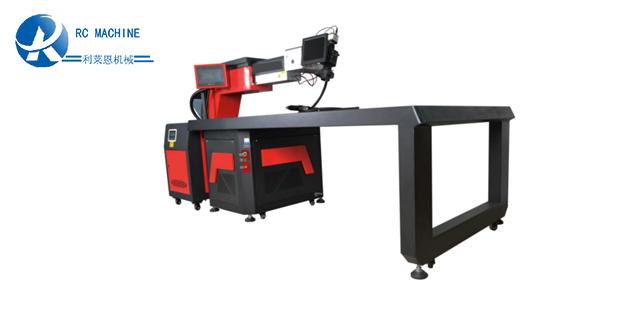

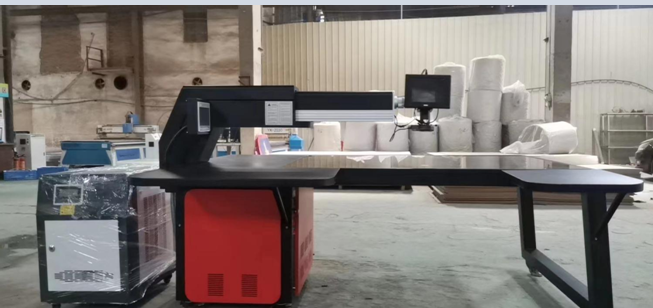

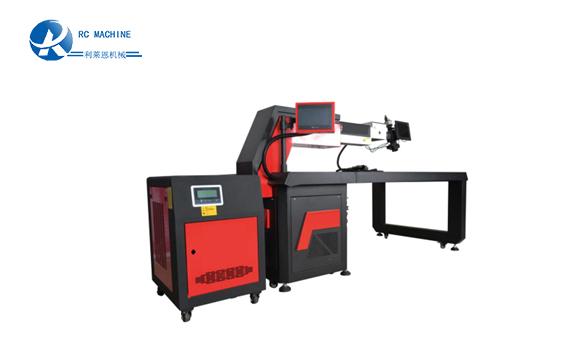

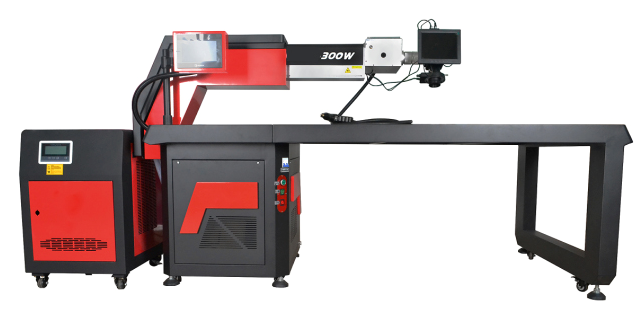

Yag +fiber laser welding machine can weld Stainless steel, iron, metal, galvanize. For advertising Led letter making.signing board welding, stainless and galvanize steel welding. For the small size letter can put on the table directly welding, using the camera system see the position, which make machine more accuracy welding. For the fiber wire 5 meters long, that is for the big size letter can weld on the ground easily.
Model number | |
Laser Maximum output power | 350W |
Laser work material | Nd:YAG |
Laser wavelength | 1064mm |
Minmum welding molten pool | 0.1mm |
Welding depth | 1mm |
Welding thickness | 5mm--8mm （carbon steel ） |
Pulse width | 0.1-20ms Continuous adjustable |
Pulse frequency | 1-100Hz Continuous adjustable |
Observation system | The CCD camera and red light positioning |
Total power | ≤9kw |
Power demand | 220v/single phase 50Hz/40A |
Table size(mm) | 2000*1000 |
Table | Marble table |
this machine is widely used in various industry such as cables, circuit boards ,IC ,electronic components and other industries.

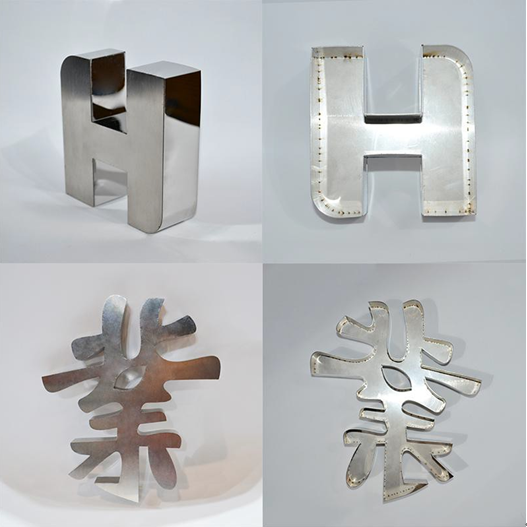

for welding all kinds of fine words, Seiko word and LED metal welding forming
