Fiber Optic -30mm Dynamic Focusing Large Range galvanometer
Source:   Author:

Product Features

1: Universal 2D control card or embedded system for all XY2-100 digital mirror protocols, without the need for a dedicated three-axis control card;



2: Seamless integration with 2D card function, suitable for flight, multi head, visual positioning, ultra long marking, step marking and other applications;



3: Equipped with a dynamic focus control system and a unique Z-axis spatial tracking algorithm, the focal plane control is more uniform;



4: Multiple range free switching, meeting the requirements of small-scale deep carving and large-scale marking;



5: Compact design, small size, large range, more convenient integration;

6: The electric Z-axis is optional, achieving automatic correspondence between the format switching and the focus position;



Typical applications:

Textile industry, wood products, packaging industry, marking and cutting



Performance parameters:

Optical parameters

Adaptive light source

1064nm fiber laser

Mirror spot diameter

30mm

Laser input spot diameter

9mm

Mirror parameters

operating range

300mm-800mm adjustable

Deviation angle

± 12rad

Marking speed

0.5m/s

Positioning speed

3.0m/s

Positioning speed, repeated positioning accuracy

20urad

Work drift (8 hours of continuous work)

0.3mrad

Power supply, signal

Input Voltage

± 15VDC

Rated current

5A

interface protocol

XY2-100

Working environment and dimensions

Best operating temperature

25℃±10

storage temperature

-10℃~+60℃

Mirror size (length x width x height)

429X135X140mm

Mirror size (length x width x height)

9.5Kg









 Width and Spot Diameter:



Working area(mm)

300X300

400X400

500X500

600X600

800X800



Focus (mm)

400

500

600

700

900



Minimum spot diameter @ 1/e2 (mm)

0.0220

0.0265

0.0320

0.0380

0.0430

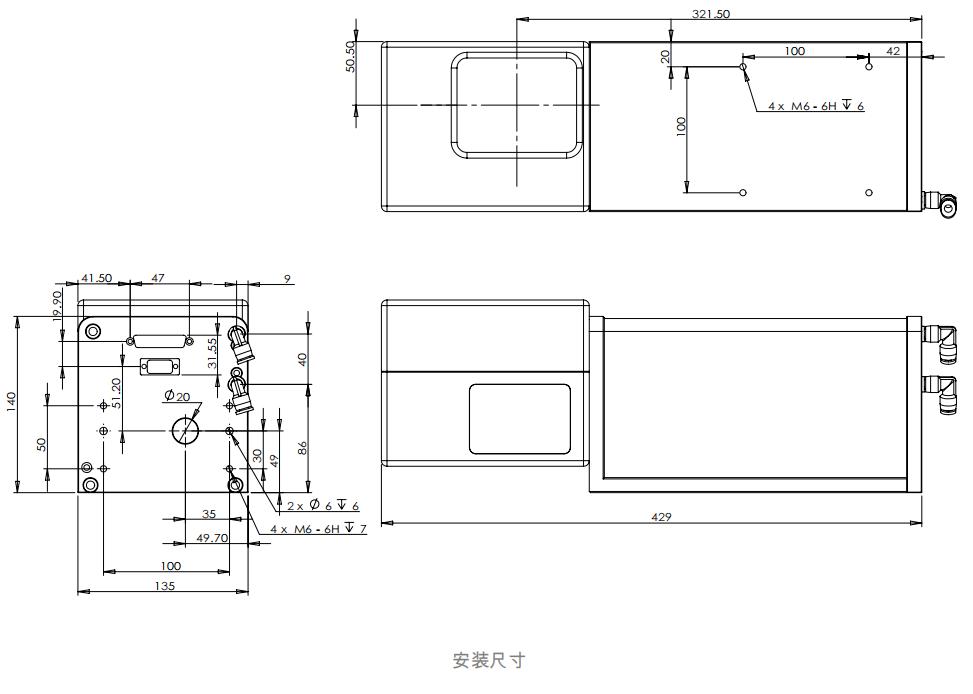

机械参考图
