Product Features：

1:The overall shell is designed with CNC technology, featuring excellent dust-proof and

shielding performance. It has a compact shape, facilitating integration；

2:The small spot design enables a minimum focused spot size of 22ìm.;

3:It is equipped with its own focusing wheel, allowing for free switching within multiple

ranges. It can meet the requirements of both small-spot deep engraving and large-scale

engraving simultaneously.；

4:With a large depth of focus design, within a 200mm range, the depth of focus reaches 150mm

(±75mm).

5:The software has powerful functions and supports engraving on various irregular surfaces

such as concave-convex surfaces, inclined surfaces, conical surfaces, and curved surfaces.

Applications：

Marking on irregular surfaces, marking on high and low stepped surfaces, relief carving

cleaning, surface treatment

Parameters：

Optical Parameters

Compatible Light Source 1064nm l a s e r s a u r c e

Galvanometer Spot Diamete 12mm

Laser Input Spot Diameter 9mm

Galvanometer Parameters

Working Range: 150X150mm,200X20mm,300X300mm A d j u s t a b l e

Deflection Angle ±10rad

Marking Speed 1.5m/s

Positioning Speed 7m/s

Repeat Positioning Accuracy ＜20urad

Working Drift (after 8 hours of

continuous operation

＜0.4mrad

Power Supply and Signals

Input Voltage ±15VDC

Rated Current 5A

Interface Protocol XY2-100

Working Environment and Dimensions

Optimal Operating Temperature 25℃±10

Storage Temperature -10℃~+60℃

Galvanometer Dimensions

(Length×Width×Height) 200X100X98mm

Galvanometer Weight ≈4.0Kg

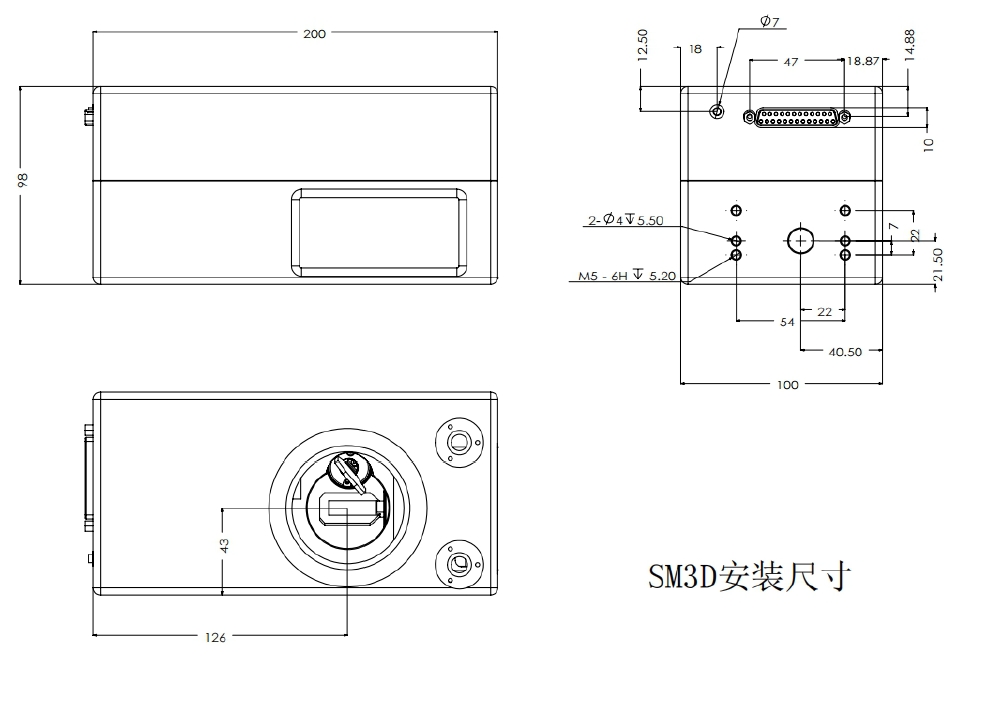

Mechanical Reference Diagram：
