1530 1000watt fiber laser cutting machine1530 fiber laser cutting machine

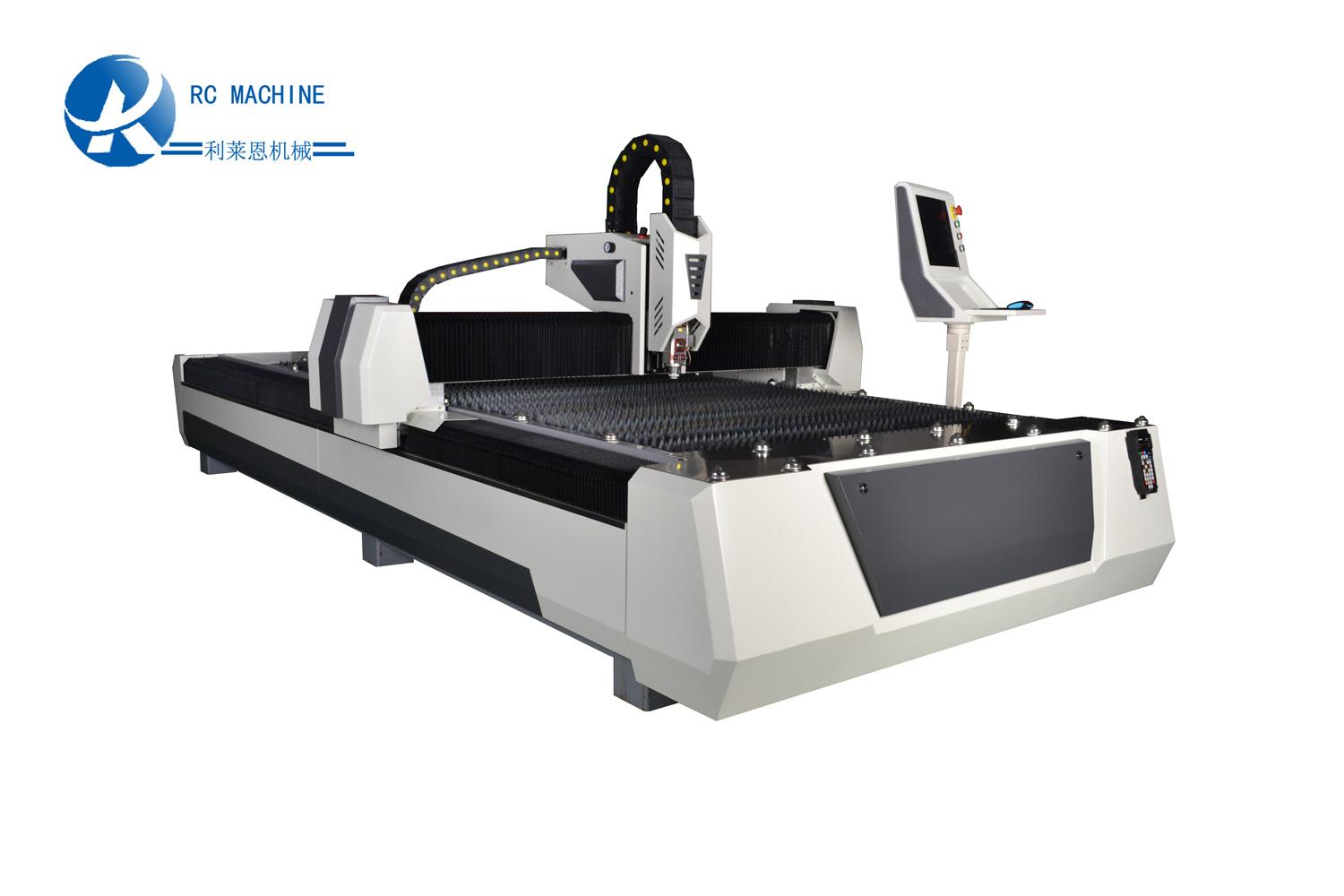

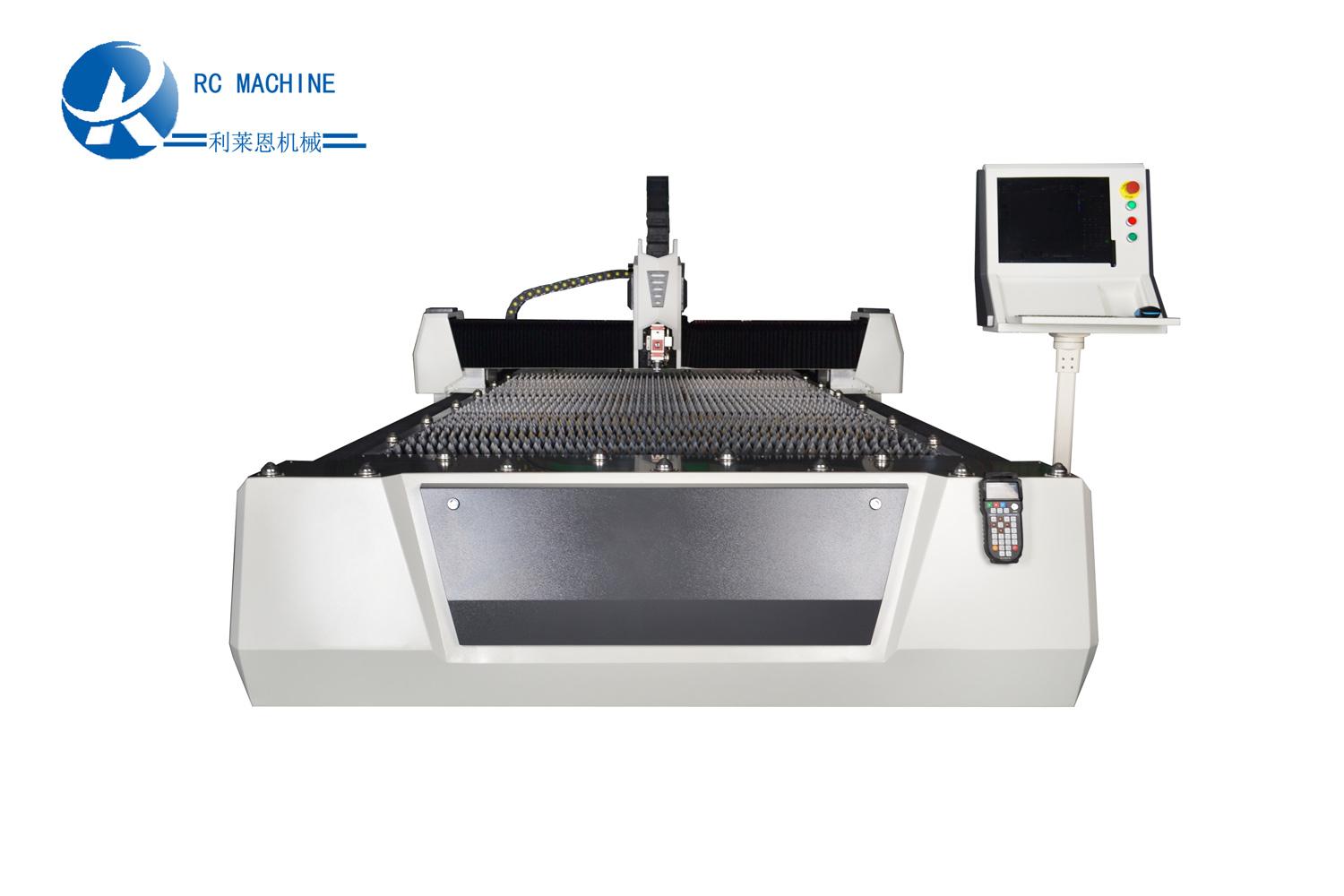

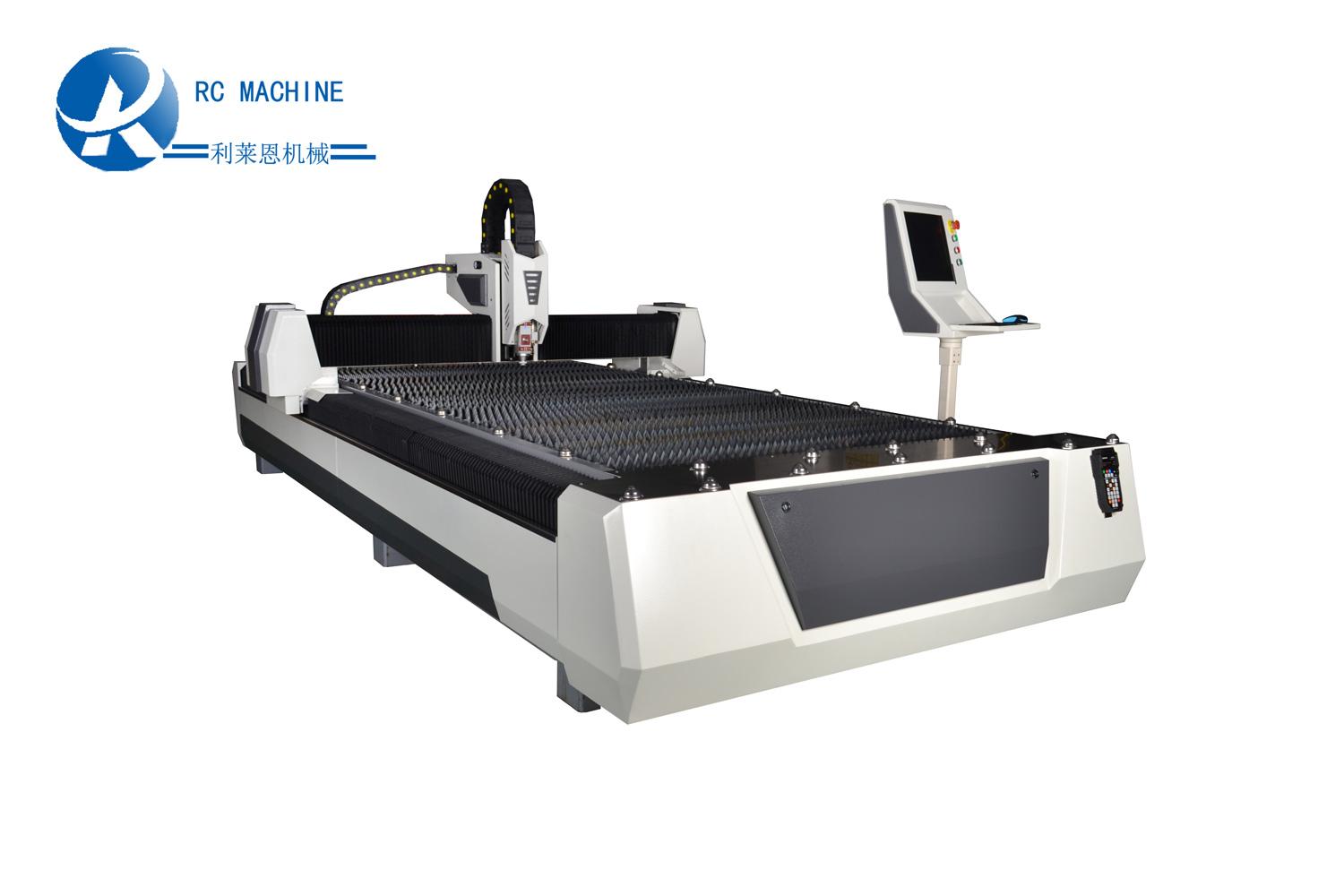

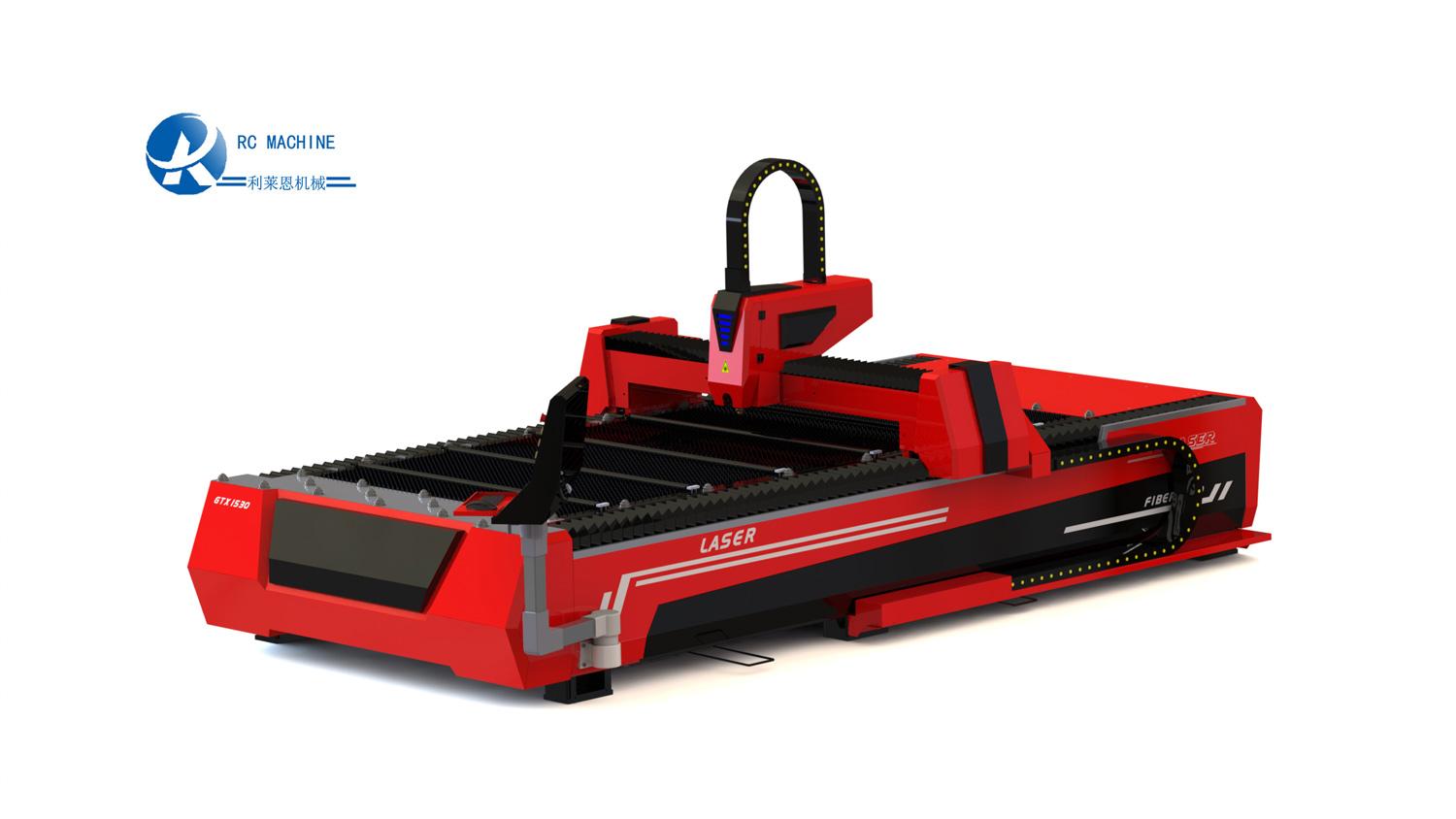

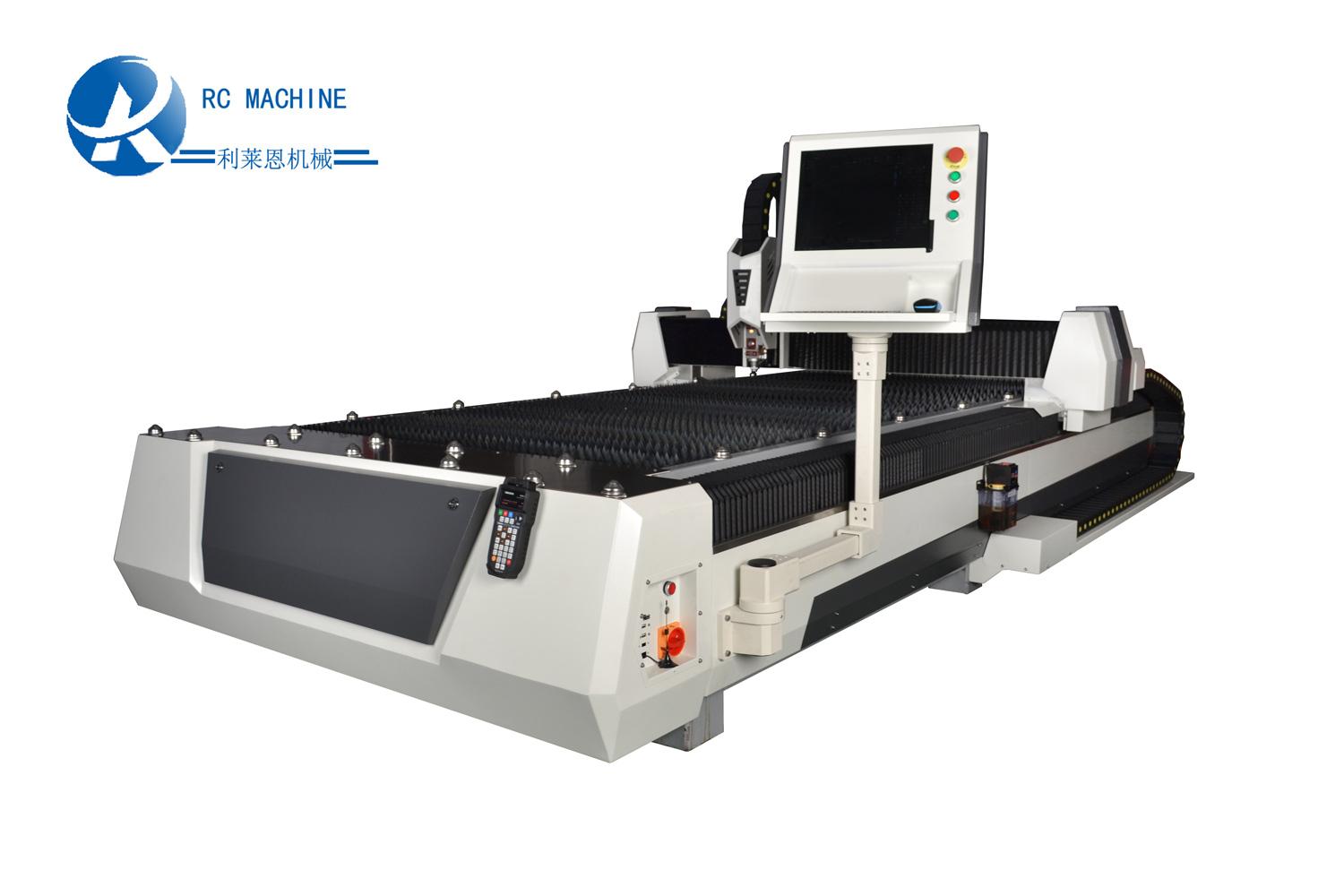

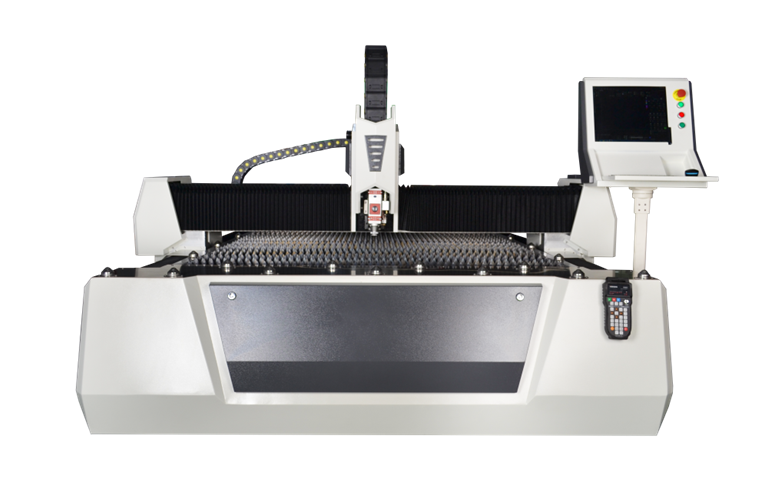

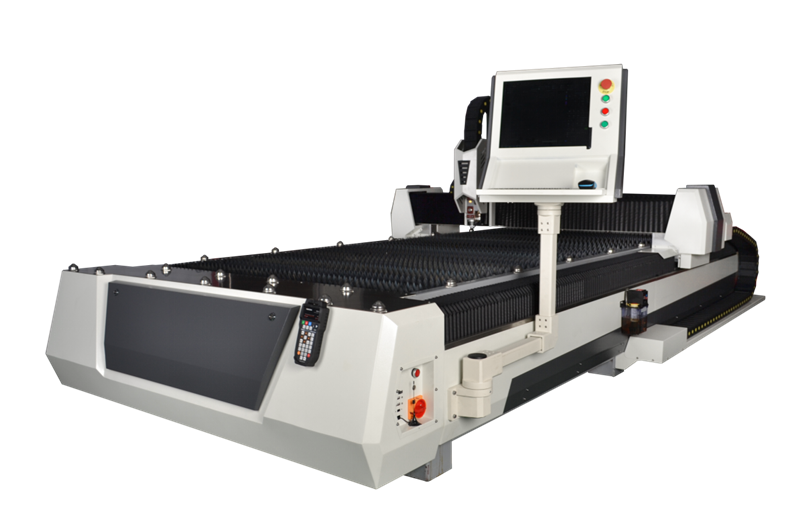

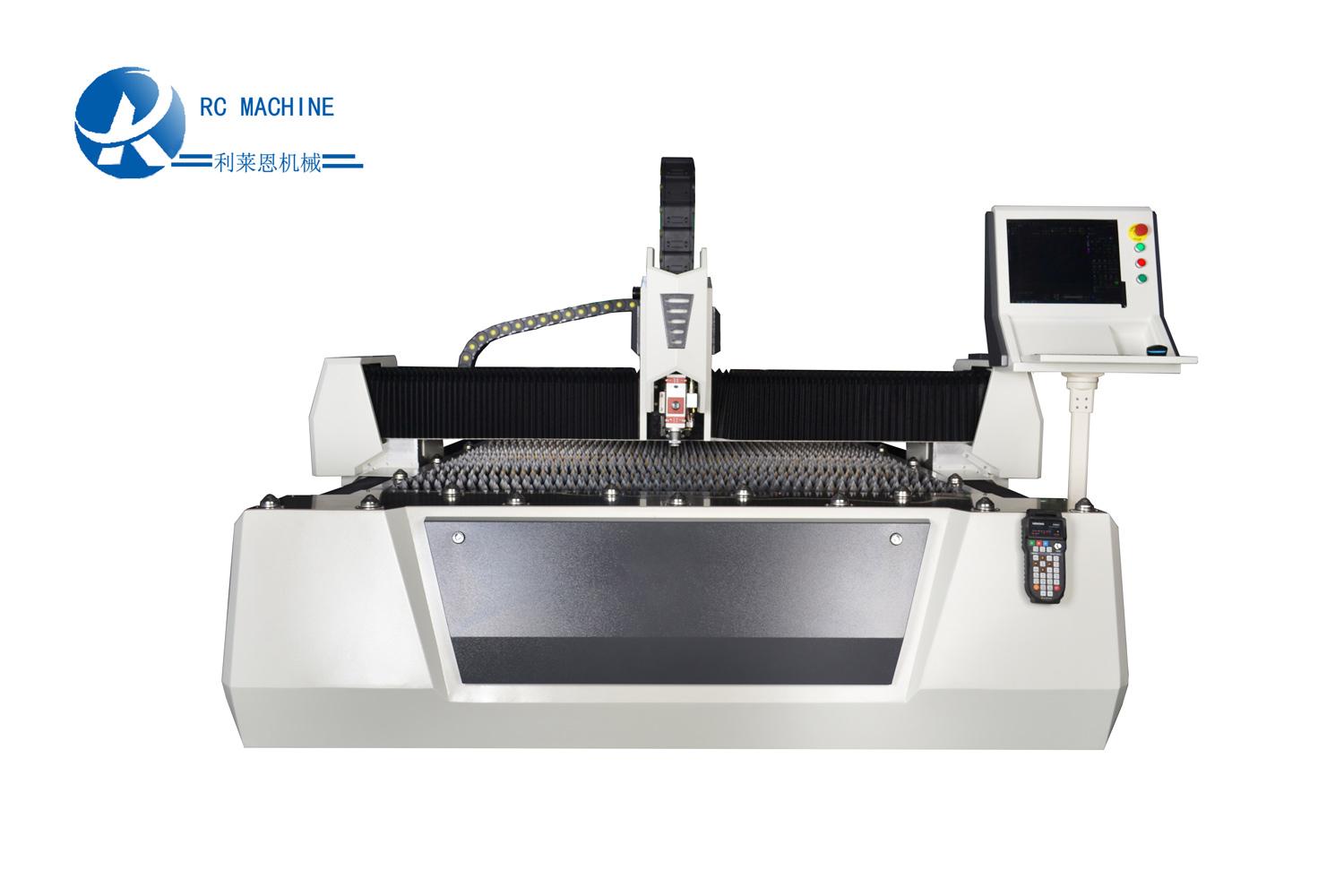

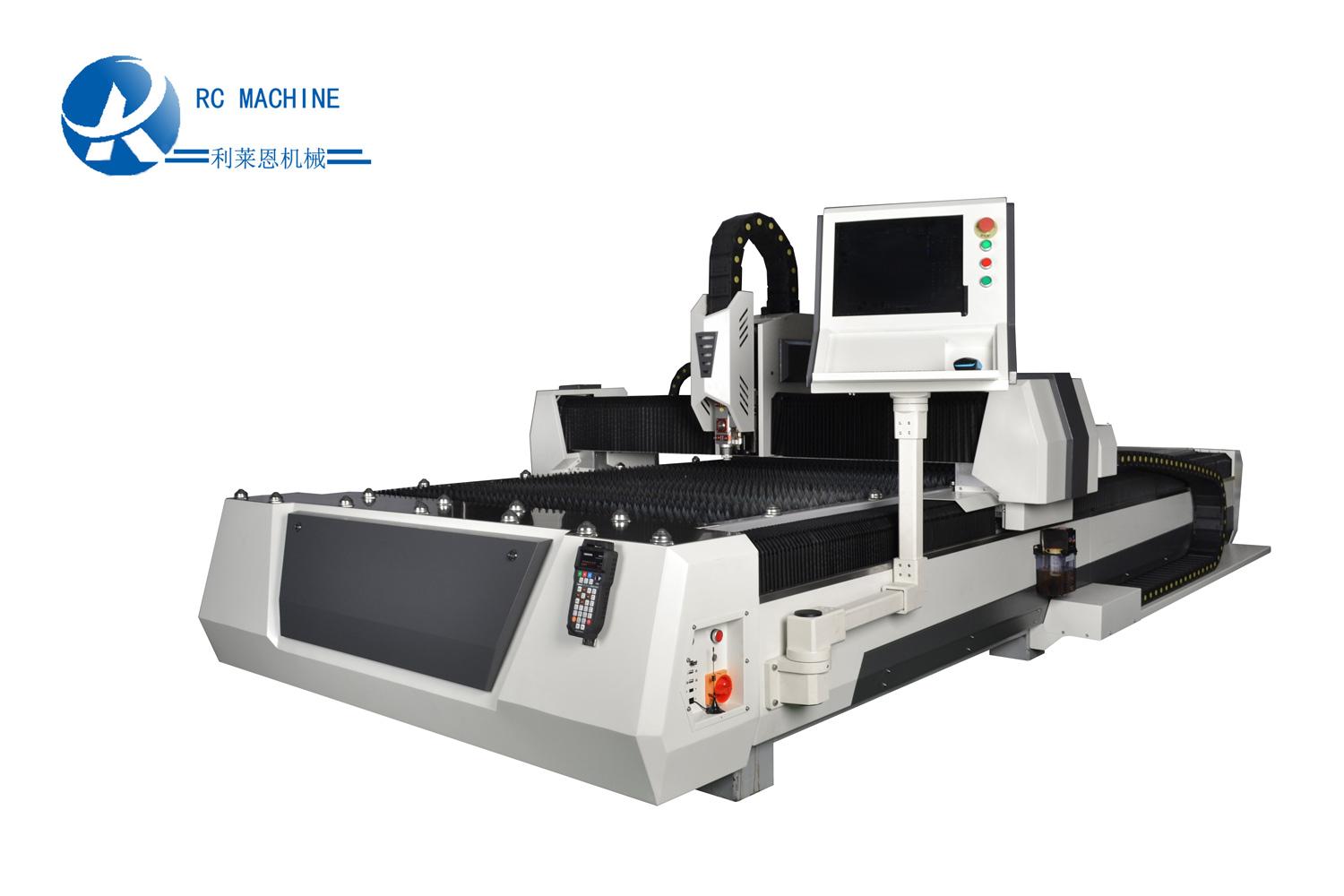

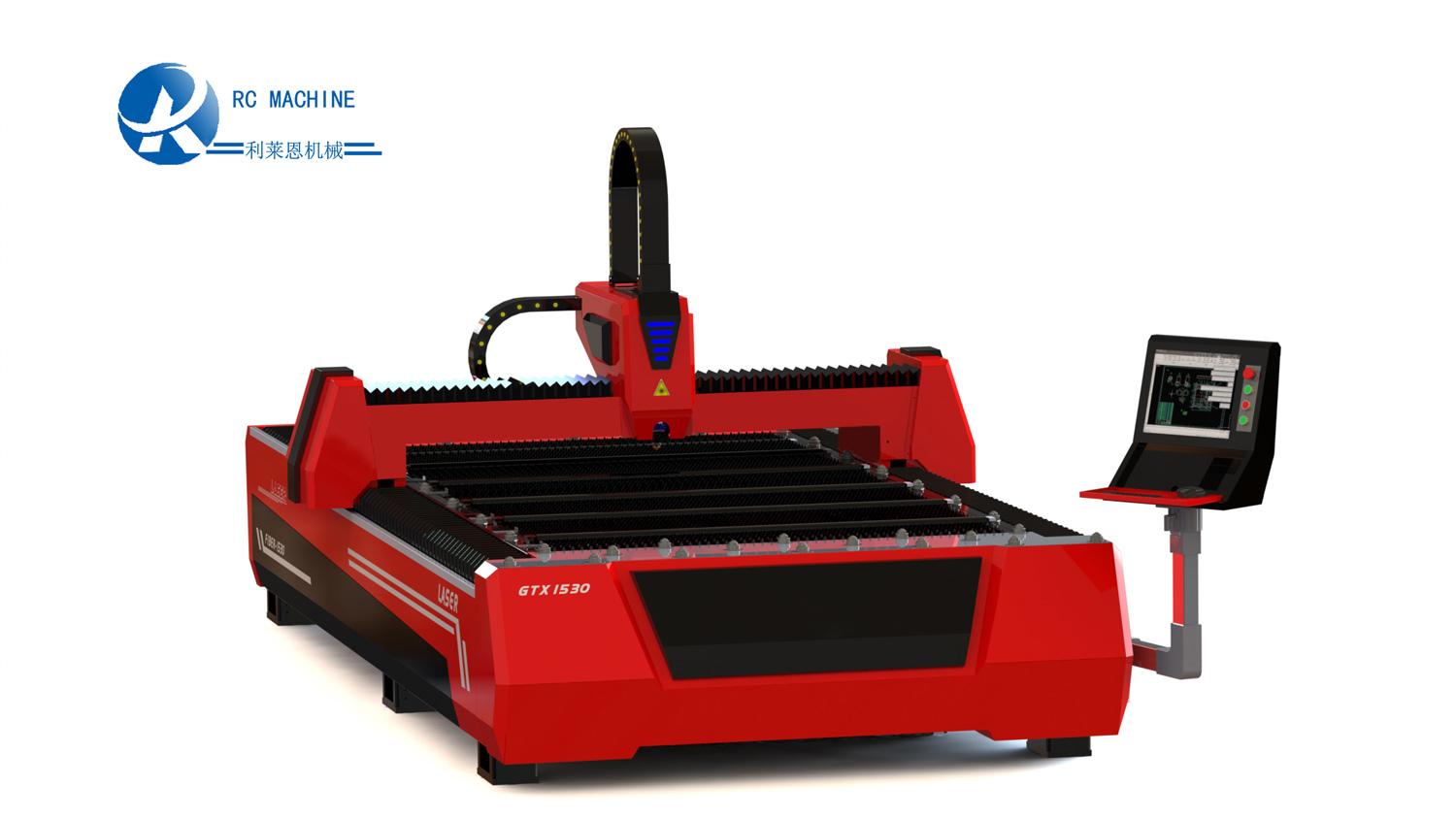

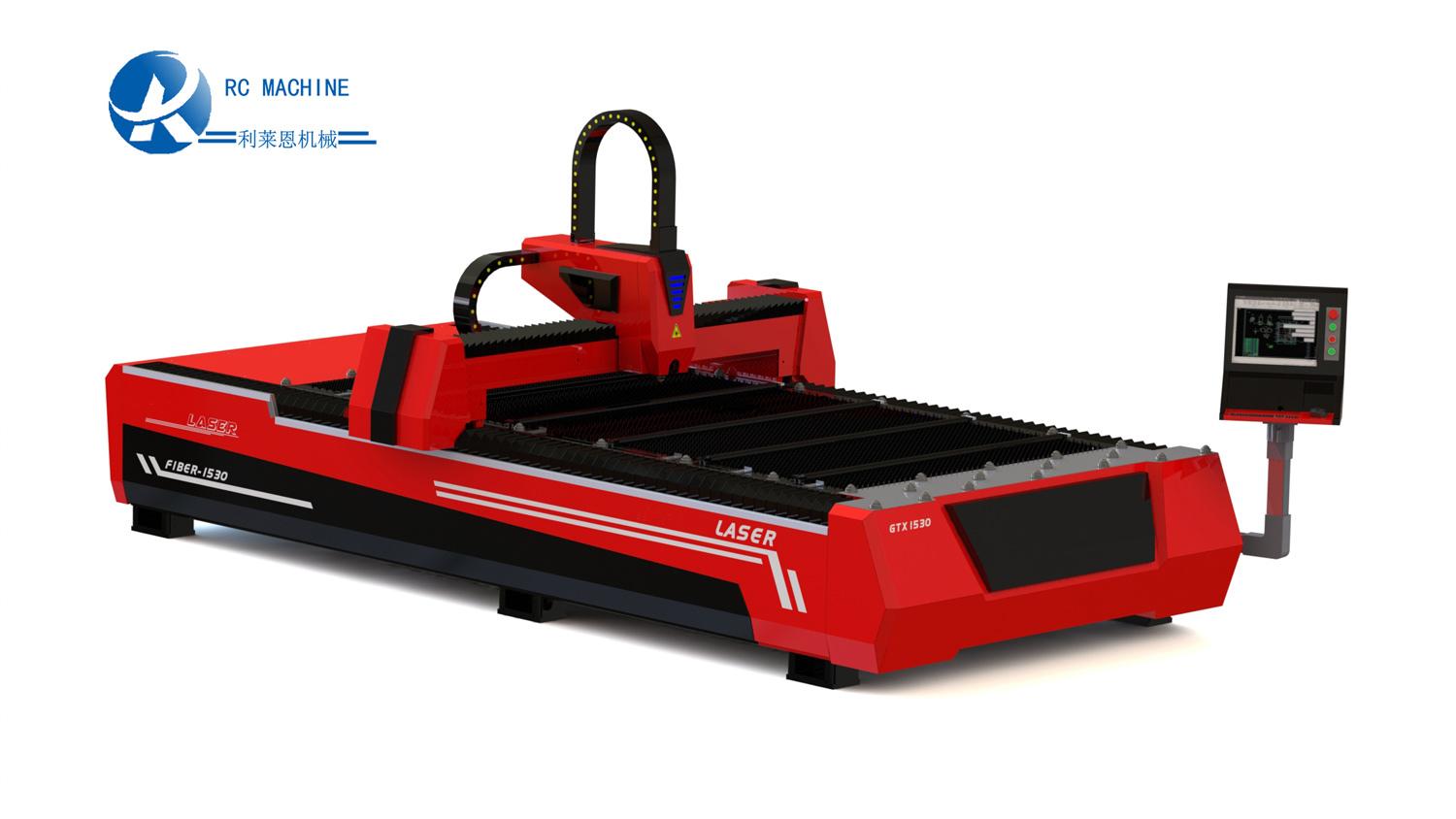

Machine picture

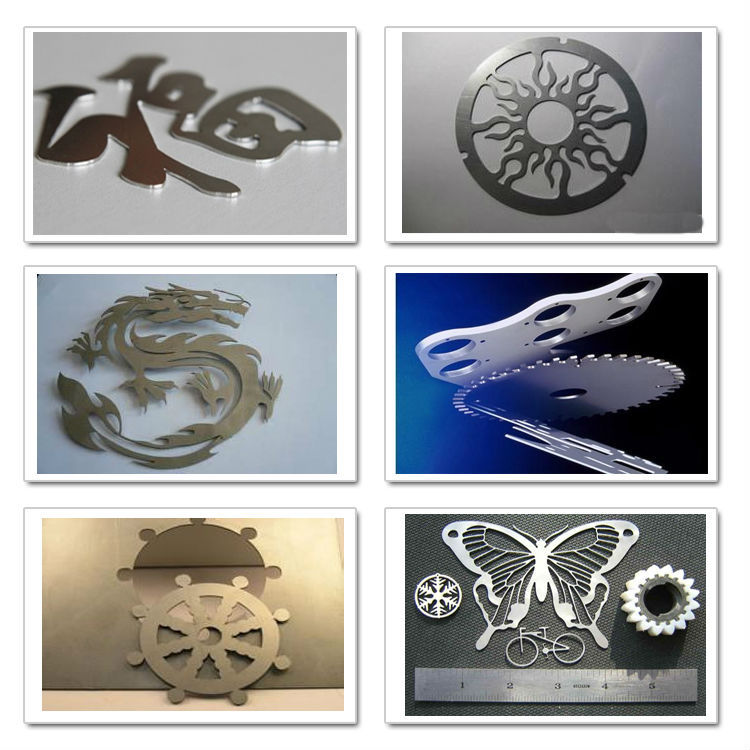

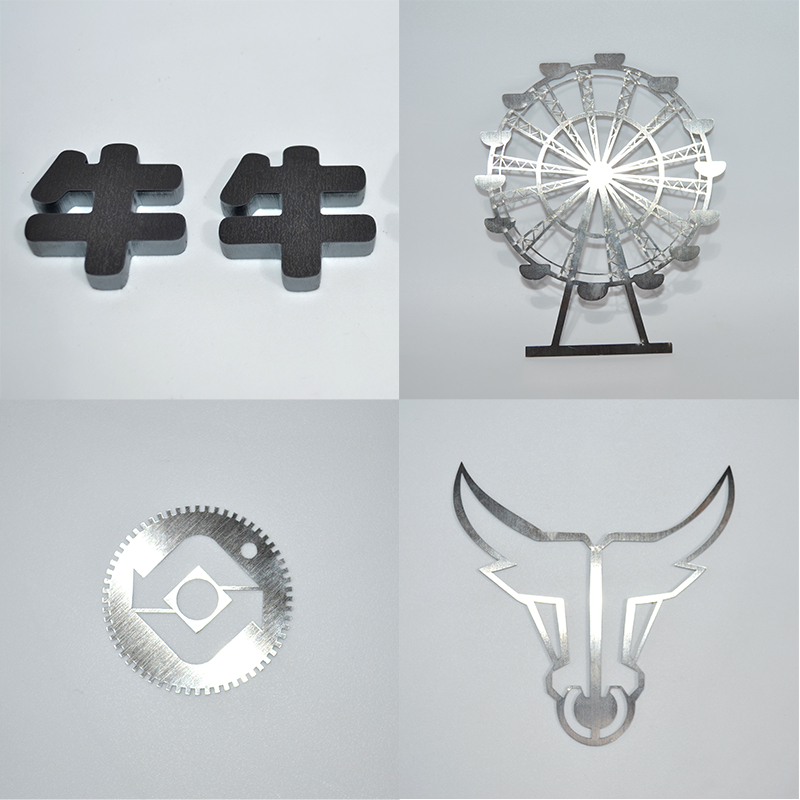

Fiber laser cutting machine cutting machine is machine for stainless copper galvanized sheet and aluminum cutting. Machine is for metal cutting, with the stable working out put, fiber laser is popular used in many area. For example advertising led letter making, Signing board, construction building, furniture stainless cutting and so on.
Fiber laser can use many years, laser sauce is the power of machine. Low cost of machine. Environmental protection. Fast speed with good out come, which let customer save money and time.
2、GTX1530/1000w Laser cutting machine main technical parameters
Laser wavelength | 1070nm |
Laser output power | 1000w |
Laser repetition frequency | CW6000 |
Energy instability | ≤2% |
Minimum line width | 0.2mm ( ≤0.4mm thickness material) |
Maximum working speed | ≤10m/min (Speed maybe different as for different material) |
Maximum working thickness | ≤10mm(carbon steel), ≤5mm(stainless steel) acrylic(max 28mm) copper: 1.5--1.8mm aluminum: 3 mm |
Continuous working time | ≥ 22 hours |
Maximum Working area | 1500*3000mm |
Worktable mechanical precision | ±0.1mm |
Resetting Positioning Accuracy | ±0.1mm |
Power Supply | 220V±5% /50HZ ±1% |
Software | The software has segment cut function |
Net weight | 3000Kg |
Grow weight | 3500KG |
Machine size | 4600*2200*800mm |
Packing size | 4800*2300*1600mm |
