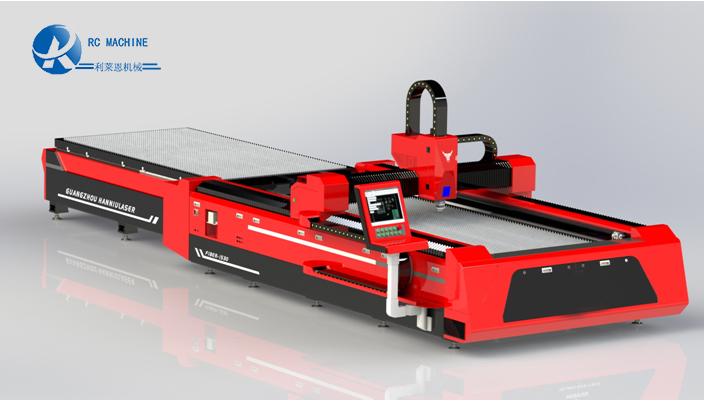

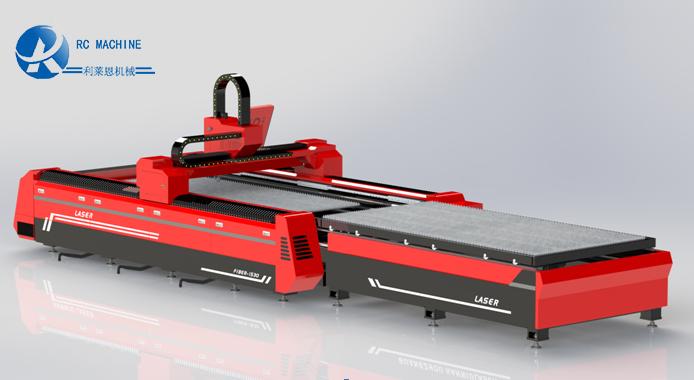

1530 double table fiber laser cutting machine
1530 double table fiber laser cutting machine
1530 double table fiber laser cutting machine
1530 double table fiber laser cutting machine
Product Introduction:

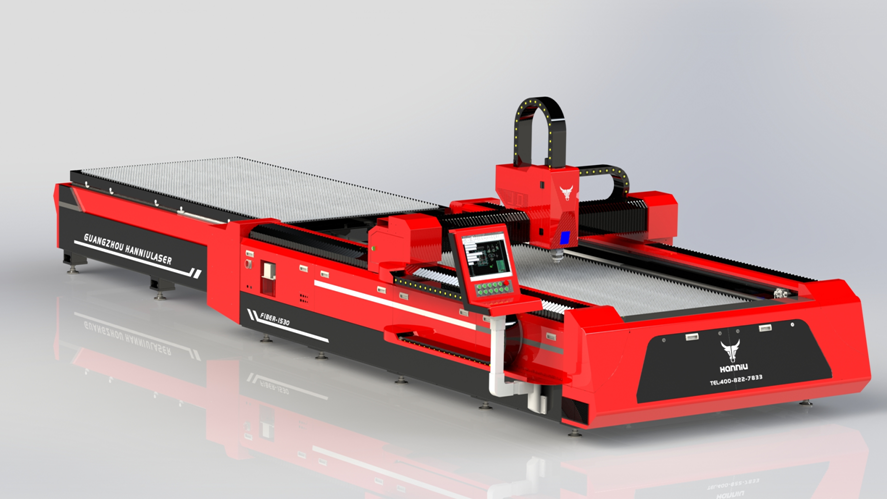

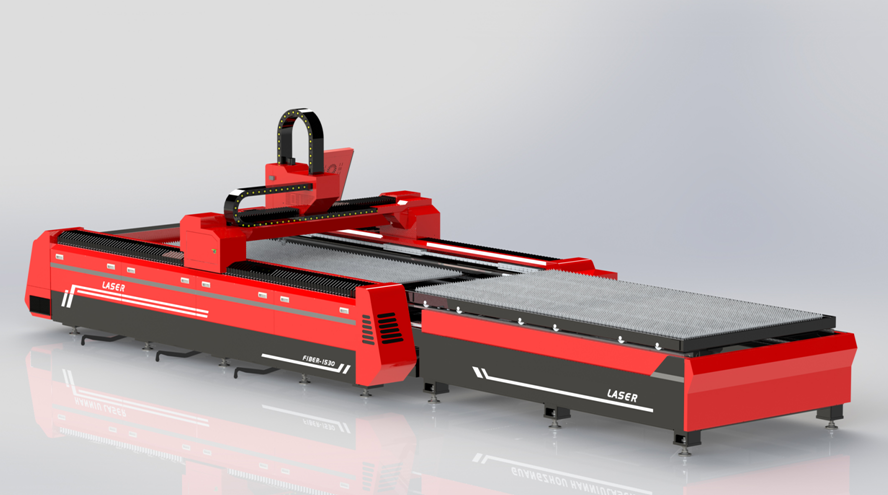

Machine pictures



Fiber laser cutting machine cutting machine is machine for stainless copper galvanized sheet and aluminum cutting. Machine is for metal cutting, with the stable working out put, fiber laser is popular used in many area. For example advertising led letter making, Signing board, construction building, furniture stainless cutting and so on.

Fiber laser can use many years, laser sauce is the power of machine. Low cost of machine. Environmental protection. Fast speed with good out come, which let customer save money and time. Double tables fiber laser is for fast working, machine can do cutting and loading material in another table, after cutting finish materials, machine table can turn around in front.

2、GTX1530S/3000w Laser cutting machine main technical parameters

Laser   wavelength

1070nm

Laser   output power

3300w

Laser   repetition frequency

3300W

Energy   instability

≤2%

Minimum   line width

0.2mm   ( ≤0.4mm thickness material)

Maximum   working speed

≤10m/min   (Speed maybe different as for different material)

Continuous   working time

≥   22 hours

Maximum   Working area

1500*3000mm*2

Worktable   mechanical precision

±0.1mm

Resetting   Positioning Accuracy

±0.1mm

Power   Supply

220V±5% /50HZ ±1%

Software

The   software has segment cut function

Net   weight

7000Kg

Grow weight

7200KG

Machine size

 8150*2200*800mm

Packing size

 5200*2300*1800mm

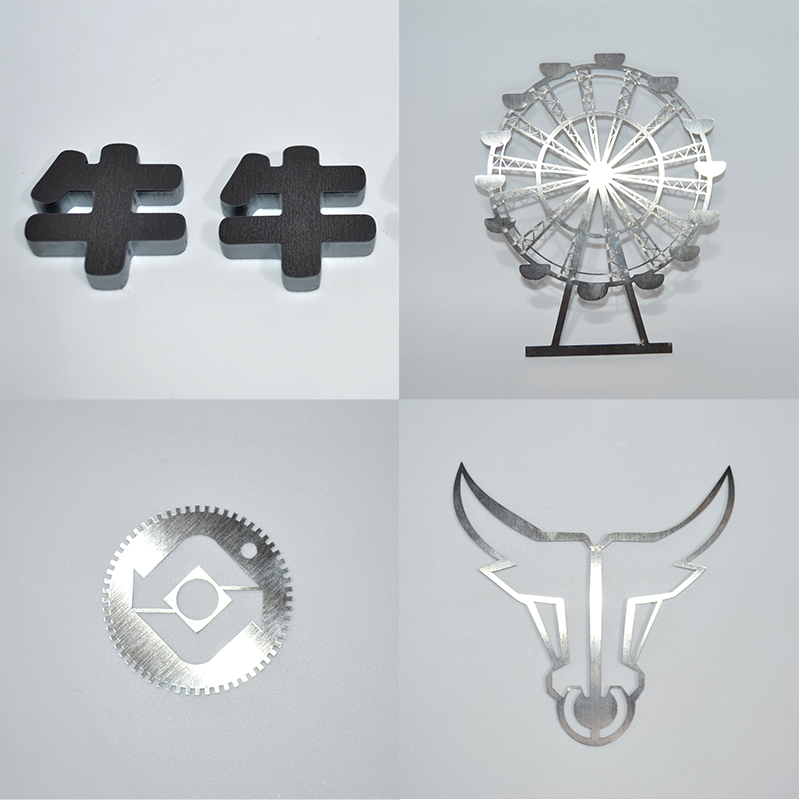

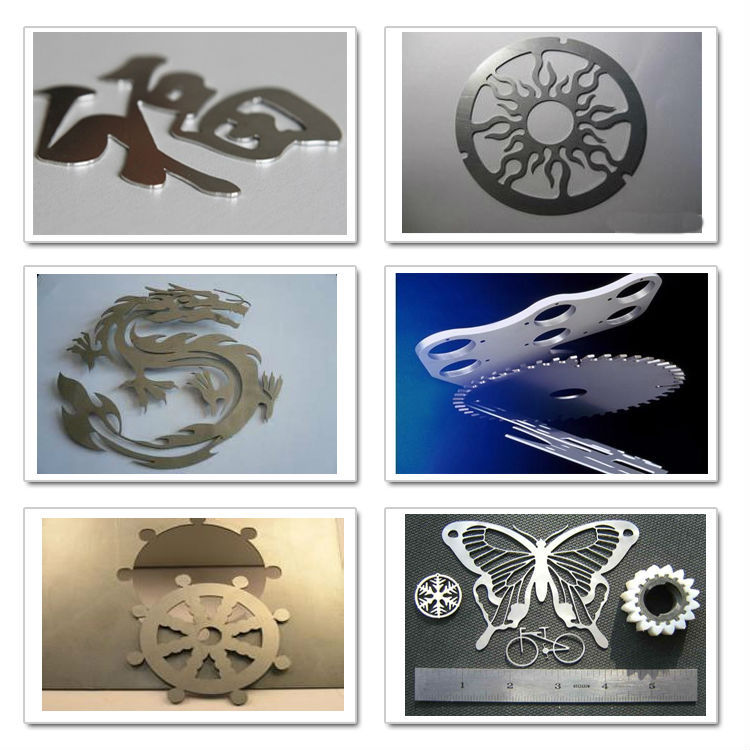

Machine cutting samples
