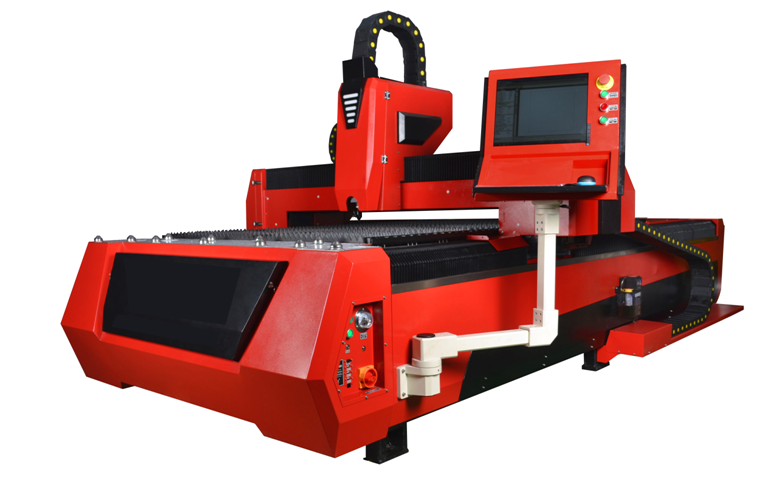

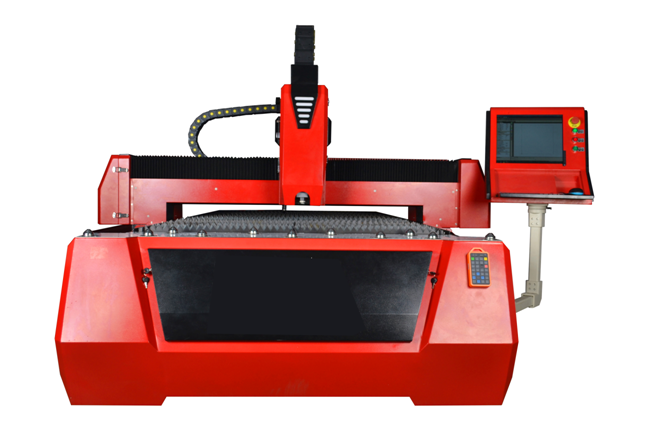

Machine picture

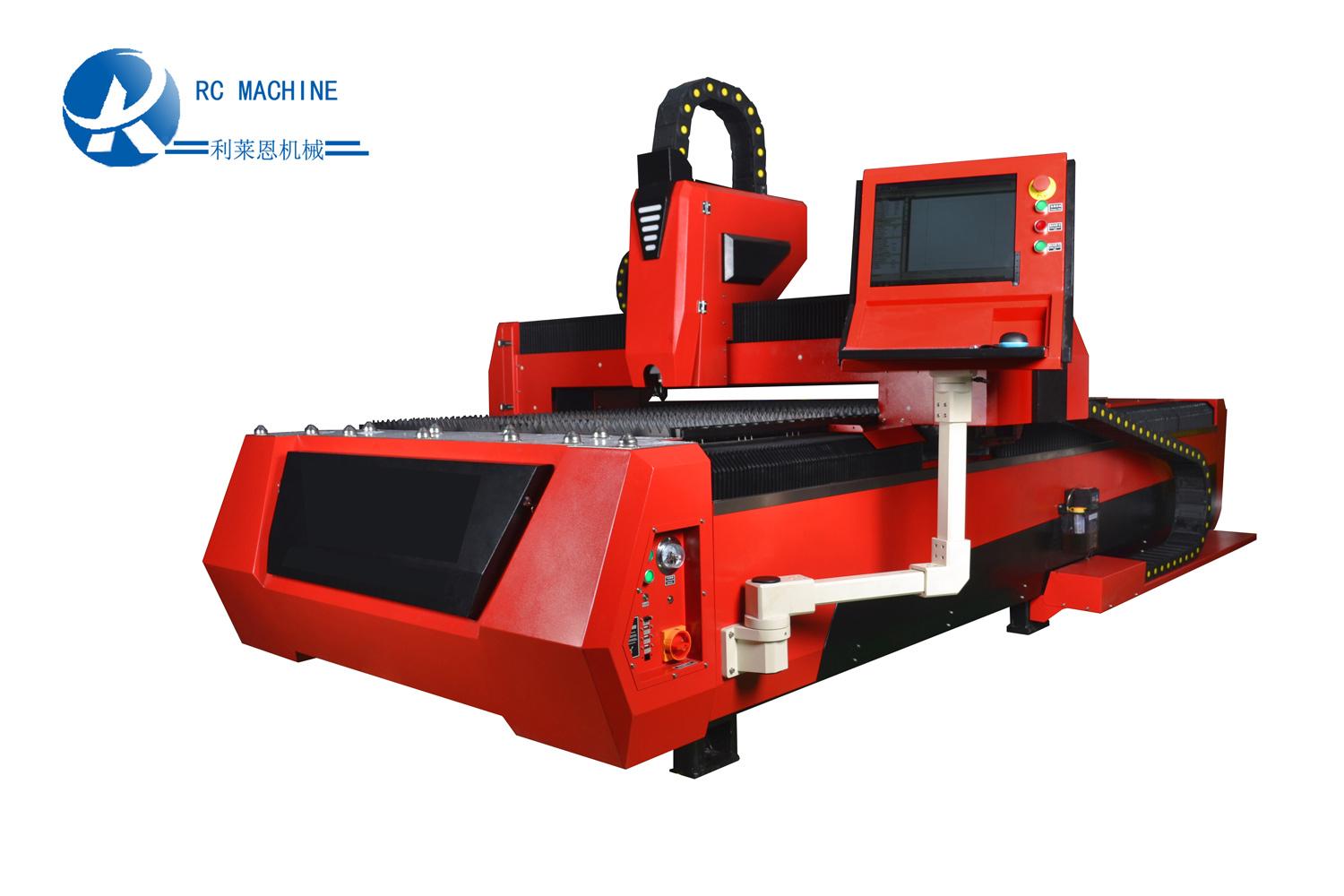

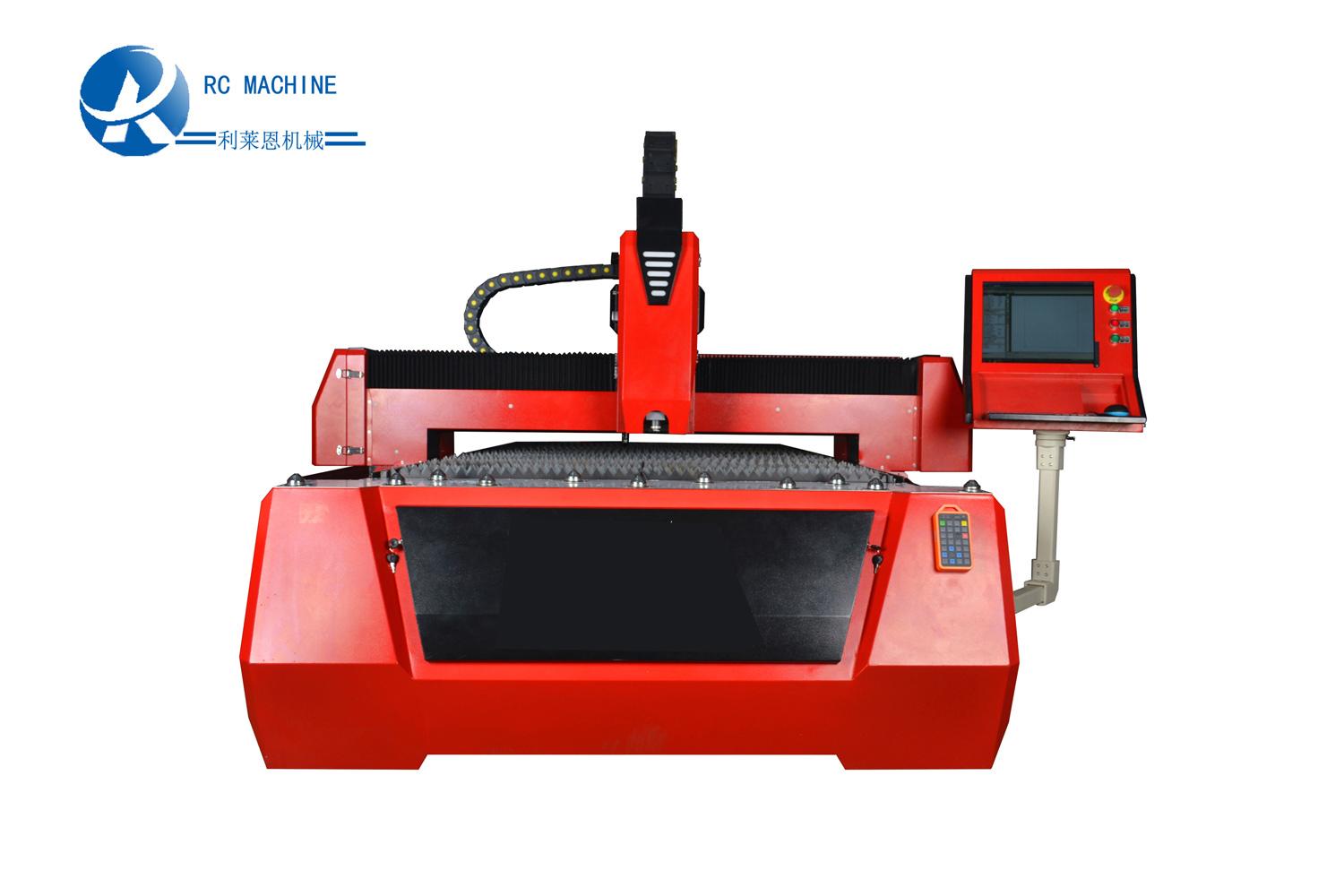

Fiber laser 1530C is for metal and non metal, machine has two heads and one system. One head is co2 for non metal cut and another head is fiber for metal. This machine can almost use all materials.
Customer factory is small and land is expensive, then can use this machine model.
Fiber laser cutting machine cutting machine is machine for stainless copper galvanized sheet and aluminum cutting. Machine is for metal cutting, with the stable working out put, fiber laser is popular used in many area. For example advertising led letter making, Signing board, construction building, furniture stainless cutting and so on.
2、GTX1530C/1000w Laser cutting machine main technical parameters
Laser wavelength | 1070nm |
Laser output power | 1000w |
Laser repetition frequency | CW6000 |
Energy instability | ≤2% |
Minimum line width | 0.2mm ( ≤0.4mm thickness material) |
Maximum working speed | ≤10m/min (Speed maybe different as for different material) |
Maximum working thickness | ≤10mm(carbon steel), ≤5mm(stainless steel) acrylic(max 28mm) copper: 1.5--1.8mm aluminum: 3 mm |
Continuous working time | ≥ 22 hours |
Maximum Working area | 1500*3000mm |
Worktable mechanical precision | ±0.1mm |
Resetting Positioning Accuracy | ±0.1mm |
Power Supply | 220V±5% /50HZ ±1% |
Software | The software has segment cut function |
Net weight | 3000Kg |
Grow weight | 3500KG |
Machine size | 4600*2200*800mm |
Packing size | 4800*2300*1600mm |
