1530F fiber laser cutting machine with rotary

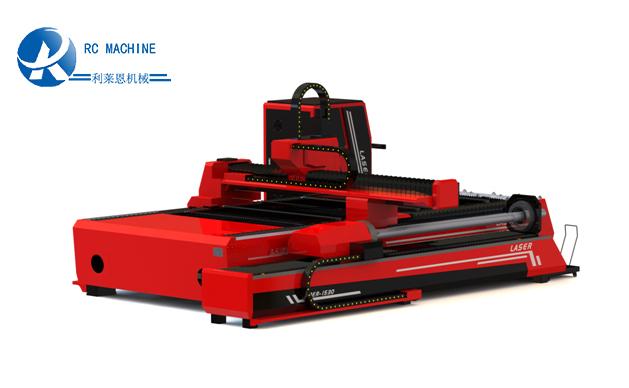

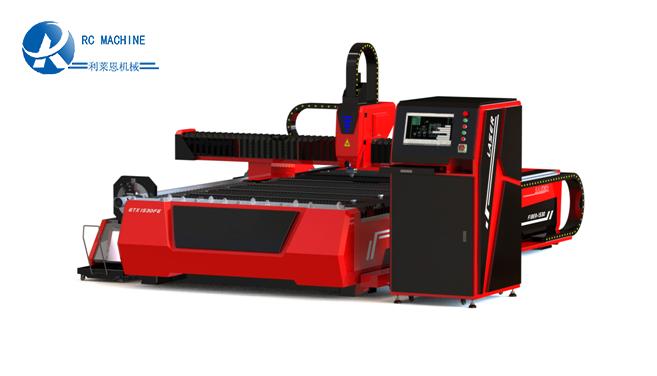

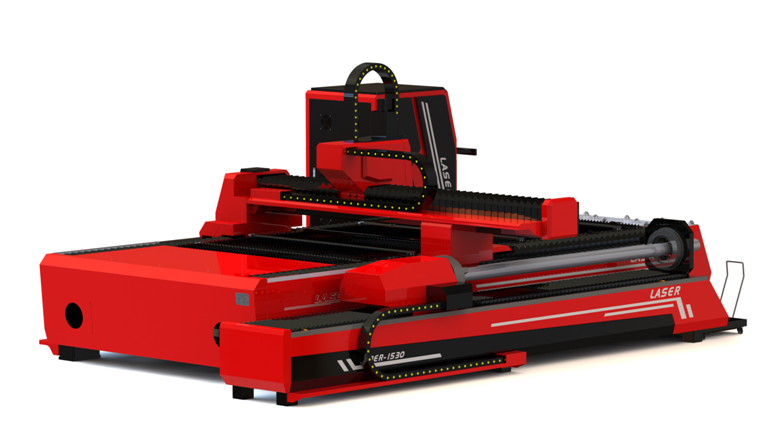

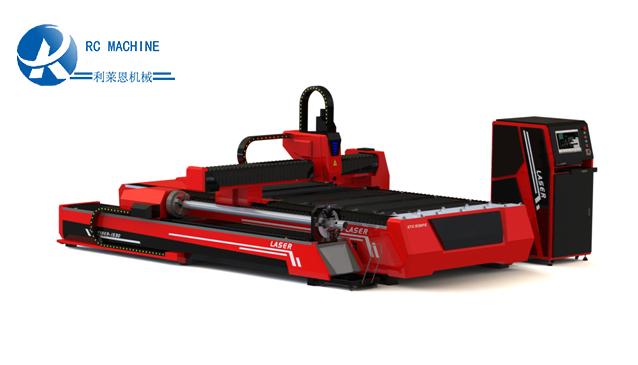

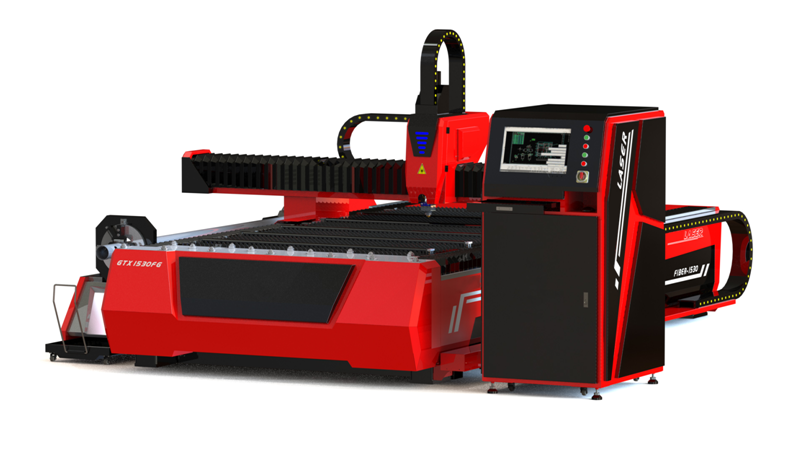

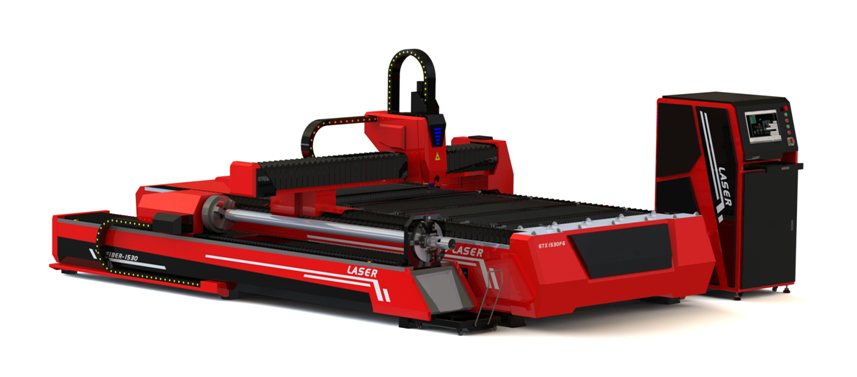

Machine picture

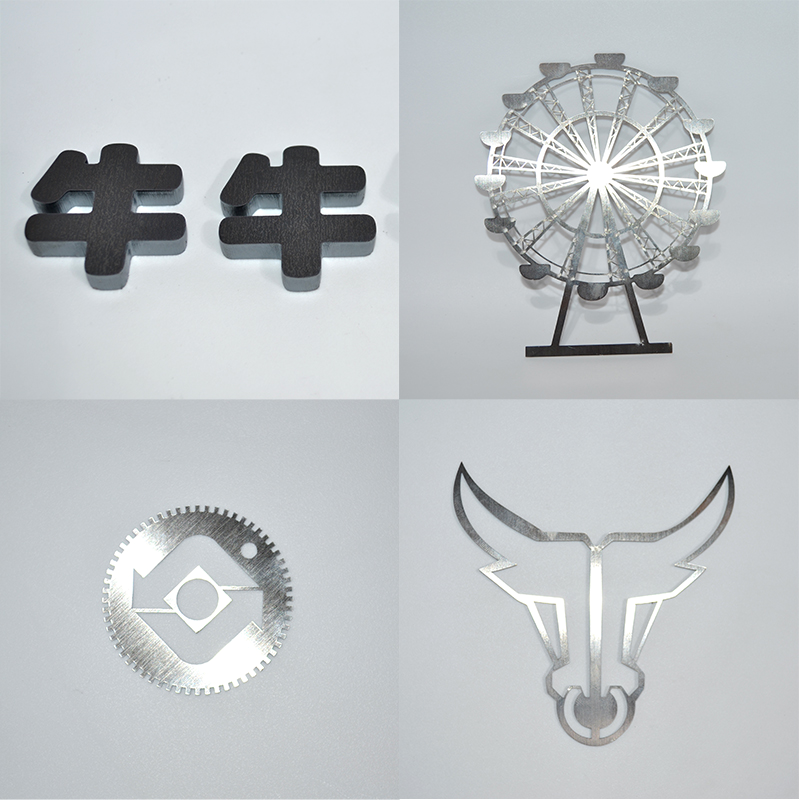

Fiber laser cutting machine cutting machine is machine for stainless copper galvanized sheet and aluminum cutting. Machine is for metal cutting, with the stable working out put, fiber laser is popular used in many area. For example advertising led letter making, Signing board, construction building, furniture stainless cutting and so on.
F1530 Fiber laser cutting machine with rotary, this machine can cut flat materials and pipe. Multifunctional machine help customer products different products. Rotary cutting can cut round pipe and frame pipe. Flat table can put the board on table then cut.
2、GTX1530C/3000w Laser cutting machine main technical parameters
Laser wavelength | 1070nm |
Laser output power | 3000w |
Laser repetition frequency | CW6000 |
Energy instability | ≤2% |
Minimum line width | 0.2mm ( ≤0.4mm thickness material) |
Maximum working speed | ≤10m/min (Speed maybe different as for different material) |
Maximum cutting thickness flat table | ≤18mm(carbon steel), ≤8mm(stainless steel) copper: 4mm aluminum: 6mm |
Pipe working area | 3meters long. 220MM max cutting diameters |
Continuous working time | ≥ 22 hours |
Maximum Working area | 1500*3000mm |
Worktable mechanical precision | ±0.1mm |
Resetting Positioning Accuracy | ±0.1mm |
Power Supply | 380V±5% /50HZ ±1% |
Software | The software has segment cut function |
Net weight | 3000Kg |
Grow weight | 3500KG |
Machine size | 4600*2200*800mm |
Packing size | 4800*2300*1600mm |
